2-Way Variable Gain UHF Masthead Amplifier With Power Supply

Product Code: BLAMHD12V-PS

  • 90° Wide opening door that clicks open/shut
  • Power LED on amplifier
  • Foam seal cable entry glands
  • Low noise linear power supply
  • F-Type connectors
2-Way Variable Gain UHF Masthead Amplifier With Power Supply
2-Way Variable Gain UHF Masthead Amplifier With Power Supply
2-Way Variable Gain UHF Masthead Amplifier With Power Supply
2-Way Variable Gain UHF Masthead Amplifier With Power Supply
2-Way Variable Gain UHF Masthead Amplifier With Power Supply
2-Way Variable Gain UHF Masthead Amplifier With Power Supply
2-Way Variable Gain UHF Masthead Amplifier With Power Supply
2-Way Variable Gain UHF Masthead Amplifier With Power Supply
2-Way Variable Gain UHF Masthead Amplifier With Power Supply
£37.88 inc vat
Lifetime guarantee on internally installed products Includes technical support

Payment methods accepted

Mastercard Visa AMEX PayPal Discover Apple Pay Google Pay

Product Description

RED Class 1, Blake 2-Way Variable Gain 5-20dB Masthead Amplifier (470-694MHz) & Power Supply Kit

Triple Filtered Reception for Optimal Performance:

4G, 5G, and TETRA Compatibility

Elevate your reception quality with the RED Class 1, Blake 2-Way Variable Gain 5-20dB Masthead Amplifier. This CE/UKCA compliant amplifier kit offers exceptional performance, incorporating advanced 5G/4G LTE filtering and amplification for TV frequencies within the 21-48 band (470-694MHz). With its variable 5-20dB gain and low noise figures (<2.5dB typical), it ensures optimal signal strength and clarity. The amplifier features F-type connectors on both inputs and outputs for easy connectivity.

Designed to reduce interference from 5G/4G LTE signals, the amplifier exhibits excellent filter characteristics with >30dB suppression for frequencies below 400MHz. It is also compliant with Class 1 EN 303 354 standards for effective filtering of 5G frequencies. Additionally, the amplifier filters TETRA signals below 470MHz.

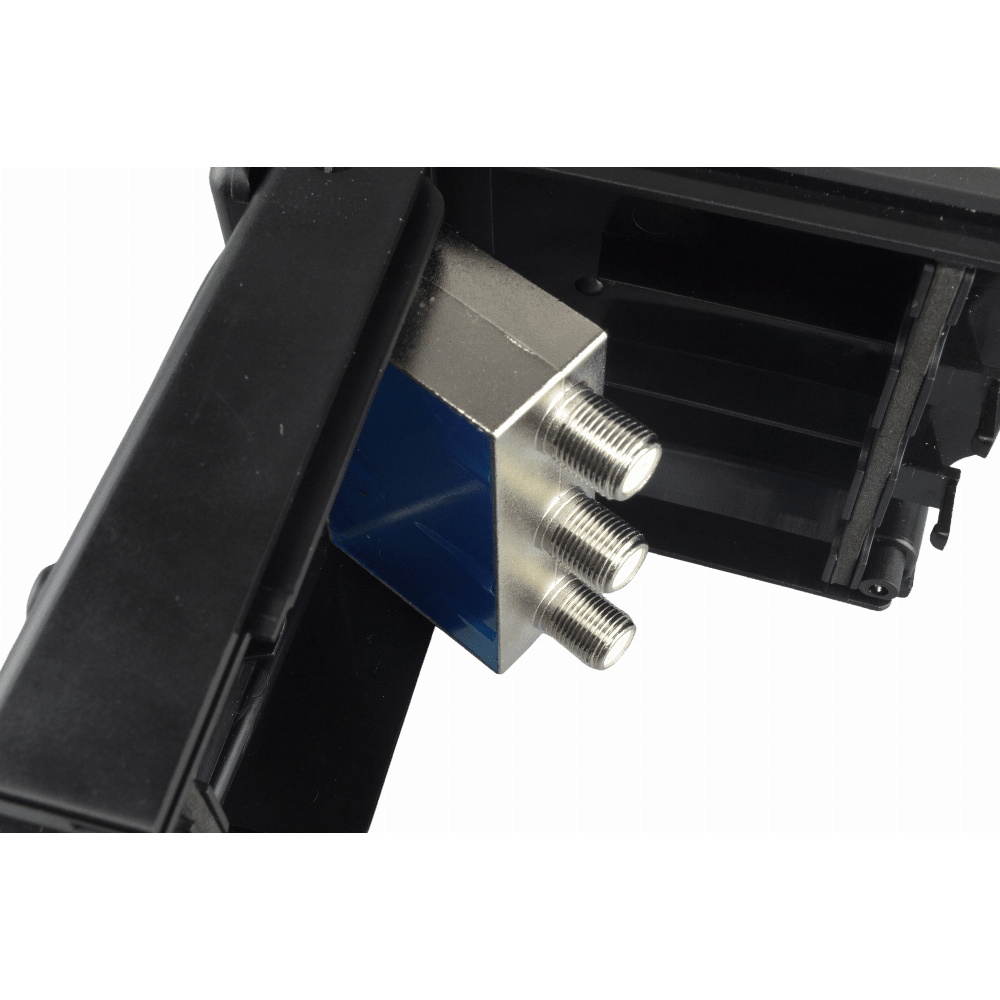

The amplifier's thoughtfully engineered design allows for convenient access. The case opens to a full 90 degrees, providing easy access to the F connectors, while the shielded amplifier casing swings out to 45 degrees. The casing includes an LED indicator to confirm power reception.

With a robust and water-resistant construction, the amplifier features seal-protected cable entry points to prevent moisture and insects from compromising its performance. The case securely closes with a satisfying "solid click" and includes an optional security screw for added protection.

Designed for linearity, the amplifier effectively handles strong local signals without compromising performance. It comes with a low-noise linear power supply rated at 100mA to ensure optimal signal quality. The power supply features a dual-colored LED for advanced short circuit protection, transitioning from green (normal) to red (short). It also offers infinite short circuit protection to prevent damage to the unit.

Installer-Friendly Design:

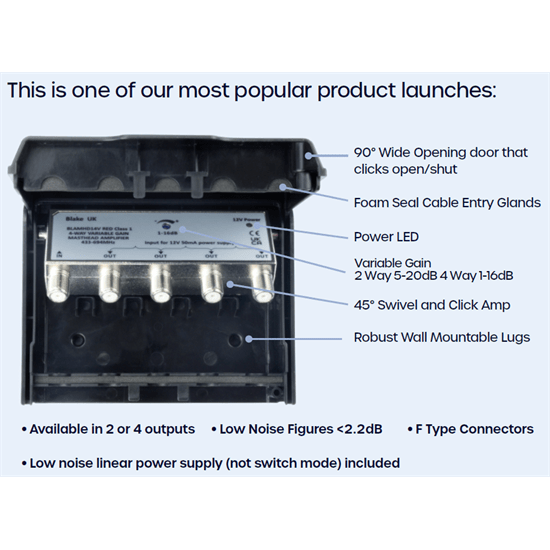

  • 90° Wide Opening Door for easy access.
  • Optional Securing Screw for added stability.
  • Heavy-Duty UV Stabilized Cable Tie for secure installation.
  • Dual LED Indicators for advanced short circuit protection.
  • Foam Seal Cable Entry Glands to safeguard against external elements.
  • Power LED on Amplifier for visual confirmation of power status.
  • 45° Swivel and Click Amp for flexible positioning.

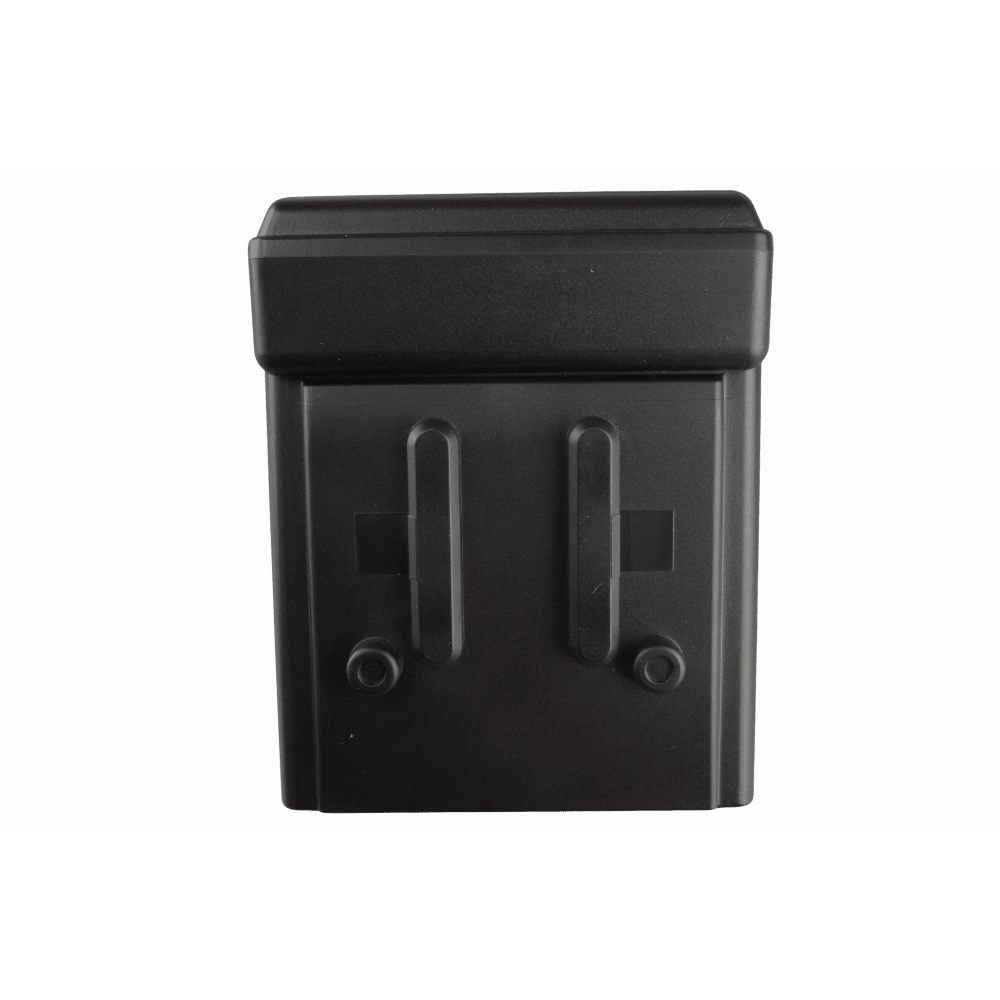

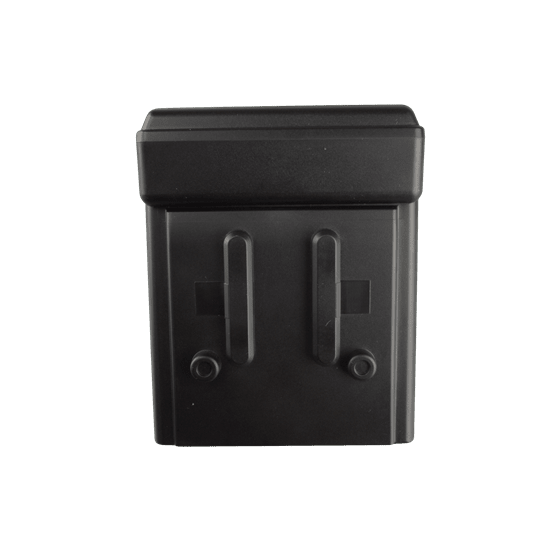

  • Robust Wall Mountable Lugs for secure installation.
  • Available in 2 or 4 outputs for diverse setup requirements.
  • Low Noise Figures <2.2dB for superior signal quality.
  • F-Type Connectors for reliable connections.
  • Equipotential Bonding Point/Earthing Tag for safety compliance.

Early Feedback from Installers:

"The quality is superb – you can tell that immediately from the robust housing."

"I’d say it’s a nicely designed product with some neat features like foam seal cable entry – you’ve clearly been listening to installers."

"Great to finally have a masthead that I can fit compression connectors into. Nice work."

This is just the beginning of our expanding product range, stay tuned for more innovative solutions.

Product Description

RED Class 1, Blake 2-Way Variable Gain 5-20dB Masthead Amplifier (470-694MHz) & Power Supply Kit

Triple Filtered Reception for Optimal Performance:

4G, 5G, and TETRA Compatibility

Elevate your reception quality with the RED Class 1, Blake 2-Way Variable Gain 5-20dB Masthead Amplifier. This CE/UKCA compliant amplifier kit offers exceptional performance, incorporating advanced 5G/4G LTE filtering and amplification for TV frequencies within the 21-48 band (470-694MHz). With its variable 5-20dB gain and low noise figures (<2.5dB typical), it ensures optimal signal strength and clarity. The amplifier features F-type connectors on both inputs and outputs for easy connectivity.

Designed to reduce interference from 5G/4G LTE signals, the amplifier exhibits excellent filter characteristics with >30dB suppression for frequencies below 400MHz. It is also compliant with Class 1 EN 303 354 standards for effective filtering of 5G frequencies. Additionally, the amplifier filters TETRA signals below 470MHz.

The amplifier's thoughtfully engineered design allows for convenient access. The case opens to a full 90 degrees, providing easy access to the F connectors, while the shielded amplifier casing swings out to 45 degrees. The casing includes an LED indicator to confirm power reception.

With a robust and water-resistant construction, the amplifier features seal-protected cable entry points to prevent moisture and insects from compromising its performance. The case securely closes with a satisfying "solid click" and includes an optional security screw for added protection.

Designed for linearity, the amplifier effectively handles strong local signals without compromising performance. It comes with a low-noise linear power supply rated at 100mA to ensure optimal signal quality. The power supply features a dual-colored LED for advanced short circuit protection, transitioning from green (normal) to red (short). It also offers infinite short circuit protection to prevent damage to the unit.

Installer-Friendly Design:

  • 90° Wide Opening Door for easy access.
  • Optional Securing Screw for added stability.
  • Heavy-Duty UV Stabilized Cable Tie for secure installation.
  • Dual LED Indicators for advanced short circuit protection.
  • Foam Seal Cable Entry Glands to safeguard against external elements.
  • Power LED on Amplifier for visual confirmation of power status.
  • 45° Swivel and Click Amp for flexible positioning.
  • Robust Wall Mountable Lugs for secure installation.
  • Available in 2 or 4 outputs for diverse setup requirements.
  • Low Noise Figures <2.2dB for superior signal quality.
  • F-Type Connectors for reliable connections.
  • Equipotential Bonding Point/Earthing Tag for safety compliance.

Early Feedback from Installers:

"The quality is superb – you can tell that immediately from the robust housing."

"I’d say it’s a nicely designed product with some neat features like foam seal cable entry – you’ve clearly been listening to installers."

"Great to finally have a masthead that I can fit compression connectors into. Nice work."

This is just the beginning of our expanding product range, stay tuned for more innovative solutions.

Technical Specification

IEC or F Type

F Type

Number of Outputs

2

Number of Inputs

1

Low, Medium or High

Variable

Internal or External

External

Amplifier Includes Power Supply Unit (PSU)

Yes

Amplifier Includes Full Output

No

RED Class 0 or Class 1

Class 1

In Line or Plug In

In Line

Lifetime Guarantee

5years

Width

54mm

Depth

127mm

Height

250mm

Weight

0.57Kg
