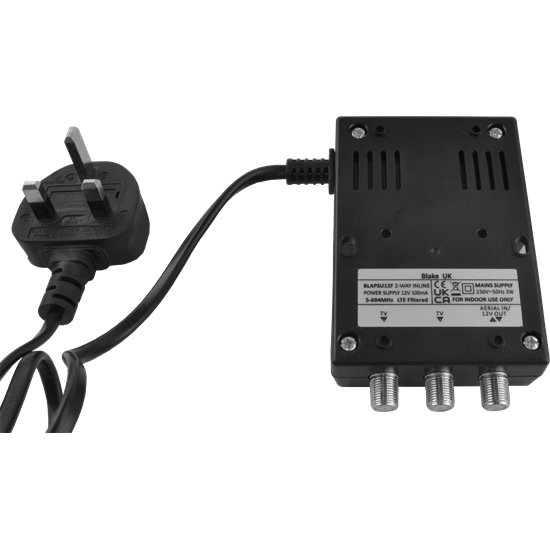

2-Way F-Type Inline Power Supply, 12V 100mA LTE 5G Protection

Product Code: BLAPSU12F

  • Infinite short circuit protection
  • Dual coloured LED (auto rest)
  • Enhanced LTE filtering - 5G & 4G
  • Additional 15dB LTE protection
  • Linear power supply, low noise
2-Way F-Type Inline Power Supply, 12V 100mA LTE 5G Protection
2-Way F-Type Inline Power Supply, 12V 100mA LTE 5G Protection
2-Way F-Type Inline Power Supply, 12V 100mA LTE 5G Protection
2-Way F-Type Inline Power Supply, 12V 100mA LTE 5G Protection
£21.53 inc vat
Lifetime guarantee on internally installed products Includes technical support

Payment methods accepted

Mastercard Visa AMEX PayPal Discover Apple Pay Google Pay

Product Description

2-Way F-Type In-line 12V 100mA Power Supply With Built-In 5G & 4G Filtering

Features:

  • High-quality 12V F-type in-line power unit for use with Blake UK masthead amplifiers and similar applications.
  • Regulated DC output 12V, 100mA.
  • Frequency: 5-694MHz.
  • 1 Input, 2 Outputs.
  • Linear power supply, low noise
  • F-type connectors for a secure connection.
  • 230V~50Hz 3W.
  • For indoor use only.

Technical Details:

    Product BLAPSU11F BLAPSU12F
    Number of Outputs 1 2
    Signal Frequency Range 5-694MHz
    Signal Insertion Loss <3dB (Typical) <4dB
    Isolation Between Outputs - >20dB
    Output Voltage +12V Regulated DC(±0.6V)
    Output Protection Withstands Indefinite Output Short-Circuit Without Damage
    Power and Status Indicator Green: Normal, Red: Short
    Input Filter Characteristics LTE (5G/4G) > 30dB Rejection
    Filter Specifications BS EN 50083 (Standard 3 Filter)
    Mains Power Requirement 230V 50Hz at 3A (3VA)
    Operating Temperature Range -20°C to +50°C
    Standards Compliance Safety: EN IEC62368 EMS: EN 50083

Product Description

2-Way F-Type In-line 12V 100mA Power Supply With Built-In 5G & 4G Filtering

Features:

  • High-quality 12V F-type in-line power unit for use with Blake UK masthead amplifiers and similar applications.
  • Regulated DC output 12V, 100mA.
  • Frequency: 5-694MHz.
  • 1 Input, 2 Outputs.
  • Linear power supply, low noise
  • F-type connectors for a secure connection.
  • 230V~50Hz 3W.
  • For indoor use only.

Technical Details:

    Product BLAPSU11F BLAPSU12F
    Number of Outputs 1 2
    Signal Frequency Range 5-694MHz
    Signal Insertion Loss <3dB (Typical) <4dB
    Isolation Between Outputs - >20dB
    Output Voltage +12V Regulated DC(±0.6V)
    Output Protection Withstands Indefinite Output Short-Circuit Without Damage
    Power and Status Indicator Green: Normal, Red: Short
    Input Filter Characteristics LTE (5G/4G) > 30dB Rejection
    Filter Specifications BS EN 50083 (Standard 3 Filter)
    Mains Power Requirement 230V 50Hz at 3A (3VA)
    Operating Temperature Range -20°C to +50°C
    Standards Compliance Safety: EN IEC62368 EMS: EN 50083

Technical Specification

Width

50mm

Depth

146mm

Height

109mm

Weight

0.38Kg
