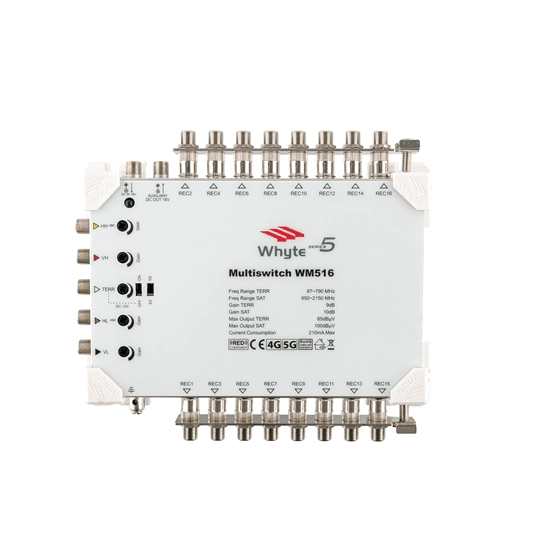

Whyte Series 5 WM516

The Whyte Series 5 Multiswitch range is universally flexible and is designed to be used in small, medium to large Integrated Reception Systems (IRS). Whyte Multiswitches can be used as Standalone Multiswitches when powered directly via the18V Auxiliary Input by using a Whyte 0.8A Power Supply Unit (model WPSU-0.8A).

Features:

  • Line Powered Multiswitch
  • Use as standalone when powered with a Whyte PSU
  • SAT gain 10dB / TERR gain 8dB
  • Gain Control on all inputs
  • Comes with Earth Bars fitted
  • Uses the receiver power to reduce demands on system PSU
  • Colour coded inputs and outputs
  • LED power indicator
  • Inbuilt LTE filter
  • Adequate clearance to route cables under the Multiswitch
  • Use Whyte Series 5 Launch Amplifiers and Taps/Splitters to build large capacity IRS Systems

Specifications:

Frequency Range: SAT 950-2150MHz | TERR 87-790MHz
4G/5G Switch: YES
Input (F-Type Female): 4 SAT + 1 TERR
Tap Outputs (F-Type Female): 16
Gain: SAT: =10dB | TERR:=8dB
Gain Control: SAT 11dB2dB | TERR 11dB2dB
Return Loss SAT Trunk Input/Output: SAT >10dB/>10dB
TERR >8dB/8dB
Return Loss Tap Output: >8dB
Max Output Level: SAT (IMA -35dB) 100dBV
TERR (IMA -60dB) >85dBV
Isolation: Trunk - Trunk >33dB
Cross Polar: =25dB
Tap-Tap SAT >30dB
Tap-Tap TERR >30dB
Rejection =25dB
Impedance: 75 Ohms
Switching Commands: Legacy 13/18V / 22kHz Tone
Power Supply Voltage: 18V DC
Powering: Via DC Input / Via HL and HH Input
Auxiliary DC Output (F-Type Female: YES
Power Consumption (Max)@18V: 210mA
Masthead Power Supply (Switchable): TERR Input Only 12V DC 100mA
Earth Terminal Bars (Tap Outputs): Fitted
Earth Lug: Up to 6mm Core
Dimensions Incuding Earth Bars (mm): 214 x 182 x 43
Weight: 950g
