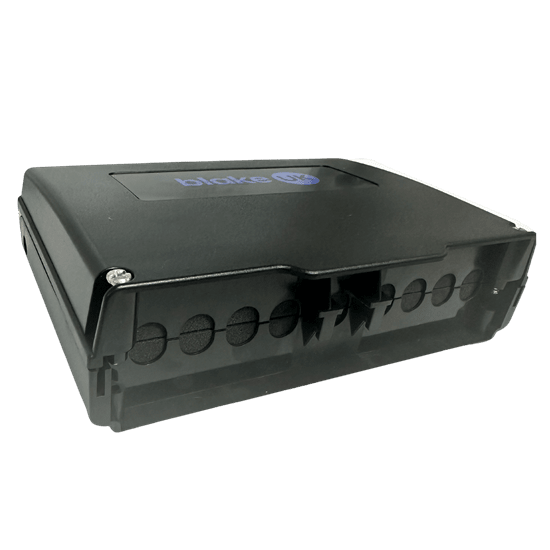

8-Way External Masthead Splitter/Combiner, Triple Filtered
Product Code: BLAMHS18P
- Can be used to combine signals
- Boosted signal through the output
- F-Type
- 1 input, 8 outputs
- Suitable for outdoor use
Product Description
8-Way External Masthead Splitter/Combiner Screened with Power Pass; 1 Input; 8 Output
Screened wideband units intended for splitting digital aerial feeds in strong signal conditions where the use of distribution amplifiers or active splitters is unnecessary. These products can also be used as general-purpose signal splitters or combiners.
Triple filtered: 5G, 4G, & TETRA
Features:
- 2-way and 4-way models also available.
- Low insertion loss with excellent 75Ω impedance matching and high isolation between outputs.
- Fully screened RF modules in robust diecast enclosures. Strong cast-in 'F' connectors.
- Proven free-draining moulded enclosures give easy access and cannot trap water.
- Directional power pass (20V and 250mA max.) from any output leg to the common input, allowing an upstream amplifier to be powered.
- With equipotential bonding point/earthing tag.
- Suitable for indoor or outdoor use.
Technical Information:
Product | Ways | Frequency Range (MHz) | Insertion Loss VHF1 (dB) | Insertion Loss UHF2 (dB) | Output Isolation (dB) | Power Pass3 |
BLAMHS18P | 8 | 47-862 | <7.3 | <8.2 | >22 | Yes |
1 47-230MHz. 2 230-862MHz. 3 Directional (diode-steered) power pass from any output(s) to common input. Typical voltage drop 0.8V. Power is isolated from reaching any un-powered output legs. For use in DC negative earth systems only.
Technical Specification
Number of Outputs
8
Amplifier Includes Power Supply Unit (PSU)
No
Width
53mm
Depth
118mm
Height
162mm
Weight
0.37kg
