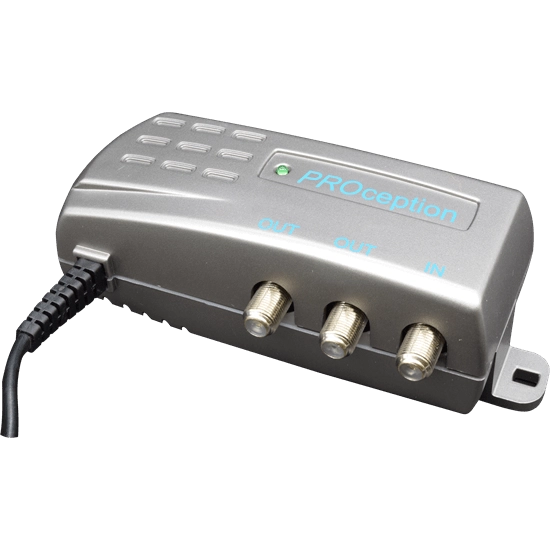

2-Way VHF/UHF Setback Amplifier With Return Path
Product Code: PROAMP12R
- For distributing TV, FM & DAB signal
- For up to 2 TVs
- Self powered
- F-Type connectors with return path
- RED compliant
Payment methods accepted
Product Description
2-Way VHF/UHF Setback Amplifier with Return Path; 1 Input; 2 Output-4dB
Features:- These mains-powered multi-way amplifiers are used to distribute the UHF output from a satellite receiver (usually from the RF OUT-2 port of a Sky&trade box), making a selected satellite channel available at up to eight additional outputs around the home.
- 9V power for infrared receiver eyes on all outputs (max. load 15 mA per outlet). Each output is individually short-circuit protected.
- Compatible with PROception PROSAT1EYE low-current IR eye (p27), and industry-standard eyes.
- With equipotential bonding point.
- The built-in RF return path (5-10 MHz) together with power for remote infrared receiver 'eyes' on all outputs makes it a simple matter to add remote control. VHF/FM and/or DAB aerials can also be connected (4-, 6- and 8-way models only) Cool-running designs independently certified to relevant safety and EMC standards.
Technical Information:
| Product Code | Inputs | Outputs | Connectors | Gain | Max Input | Frequency Range |
| PROAMP12R | 1 | 2 | F | 4dB | 88dBV | UHF (Bands IV - V) |
The maximum output level per multiplex is per the table in dBV when there are eight equal level multiplexes. If the number of multiplexes to be carried is not eight please refer to our Mux guide.
Find out more about using this product with the New Sky&trade boxes.
Introducing the PROception PROLINK22 RF replicator
New Sky&trade set-top boxes such as the DRX595 and DRX890W do not have the familiar aerial input, RF-1 and RF-2 connectors. These RF-loop through facilities have been replaced with the new I/O PORT a small round connector (10- pin mini-DIN) which allows an external RF replicator (modulator) unit to provide similar distribution functions.
Related products
Alternative products
Product Description
2-Way VHF/UHF Setback Amplifier with Return Path; 1 Input; 2 Output-4dB
Features:- These mains-powered multi-way amplifiers are used to distribute the UHF output from a satellite receiver (usually from the RF OUT-2 port of a Sky&trade box), making a selected satellite channel available at up to eight additional outputs around the home.
- 9V power for infrared receiver eyes on all outputs (max. load 15 mA per outlet). Each output is individually short-circuit protected.
- Compatible with PROception PROSAT1EYE low-current IR eye (p27), and industry-standard eyes.
- With equipotential bonding point.
- The built-in RF return path (5-10 MHz) together with power for remote infrared receiver 'eyes' on all outputs makes it a simple matter to add remote control. VHF/FM and/or DAB aerials can also be connected (4-, 6- and 8-way models only) Cool-running designs independently certified to relevant safety and EMC standards.
Technical Information:
| Product Code | Inputs | Outputs | Connectors | Gain | Max Input | Frequency Range |
| PROAMP12R | 1 | 2 | F | 4dB | 88dBV | UHF (Bands IV - V) |
The maximum output level per multiplex is per the table in dBV when there are eight equal level multiplexes. If the number of multiplexes to be carried is not eight please refer to our Mux guide.
Find out more about using this product with the New Sky&trade boxes.
Introducing the PROception PROLINK22 RF replicator
New Sky&trade set-top boxes such as the DRX595 and DRX890W do not have the familiar aerial input, RF-1 and RF-2 connectors. These RF-loop through facilities have been replaced with the new I/O PORT a small round connector (10- pin mini-DIN) which allows an external RF replicator (modulator) unit to provide similar distribution functions.
Technical Specification
IEC or F Type
F-Type
Number of Outputs
2
Number of Inputs
1
Internal or External
Internal
Amplifier Includes Full Output
No
Product Requires Power Supply Unit (PSU)
No
Amplifiers With Return Path
No
RED Class 0 or Class 1
Class 0
Inline Booster or Distribution Amplifier
Distribution Amplifier (Low)
Width
55mm
Depth
90mm
Height
165mm
Weight
0.43kg
