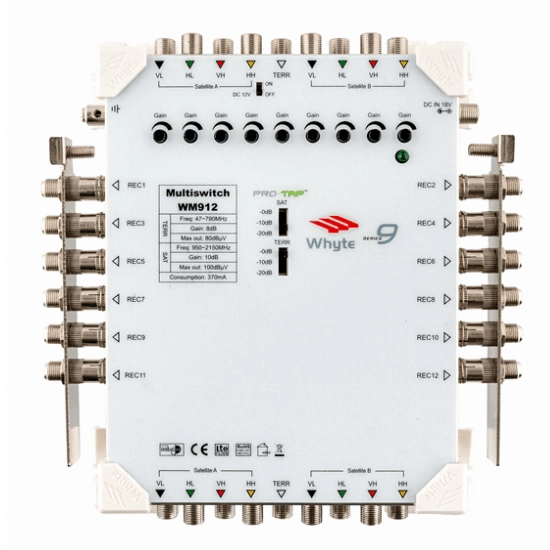

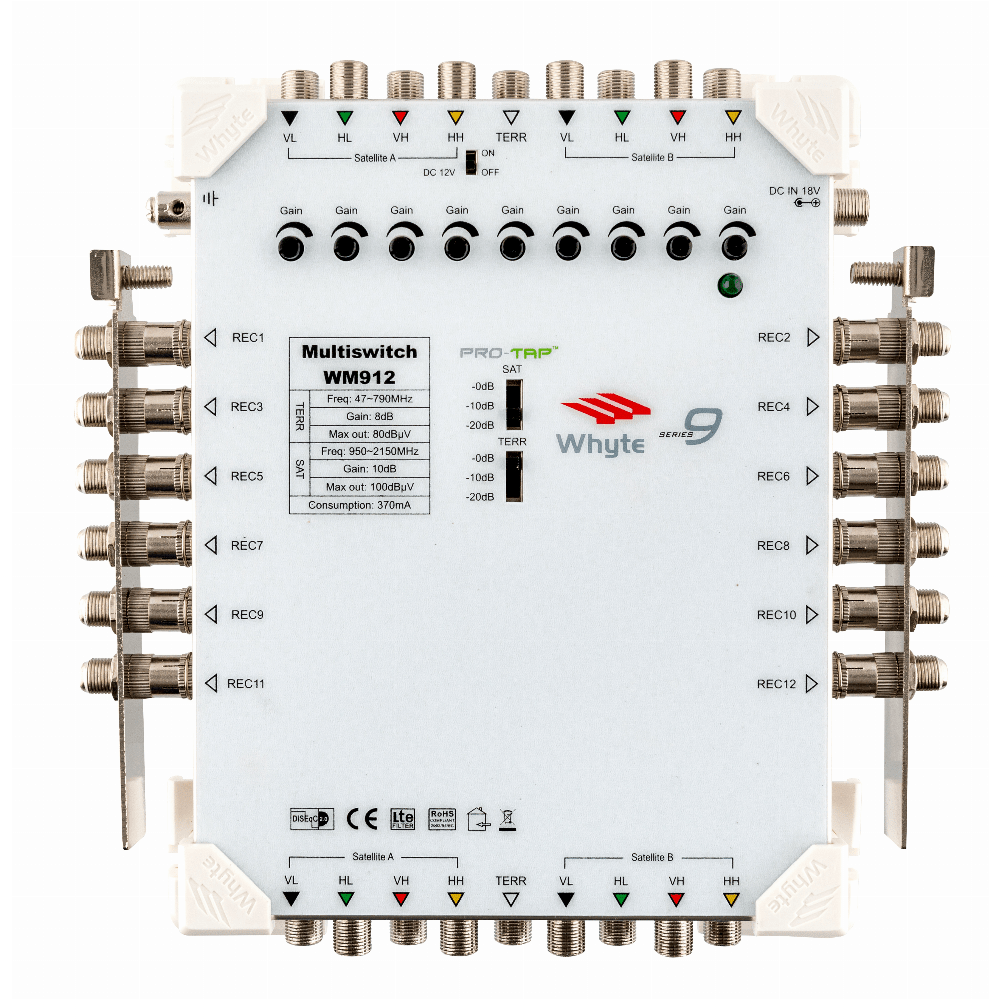

Whyte Series 9 12-Way Multiswitch

Product Code: WM912

  • Whyte
  • Line Powered cascading Multiswitch
  • Gain Control on all inputs
  • SAT Gain 10dB / TERR Gain 8dB
  • Comes with earth bars fitted
£232.27 inc vat
Lifetime guarantee on internally installed products Includes technical support

Payment methods accepted

Mastercard Visa AMEX PayPal Discover Apple Pay Google Pay

Product Description

Whyte Series 9 WM912

The Series 9 12-Way Standalone Multiswitch is is 9 wire line powered Cascading Multiswitch. It comes fitted with Pro-Tap Technology which enables the installer to easily select input tap losses of 0-10 or -20dB whilst maintaining a trunk through loss of only 4dB.

Features:

  • Line Powered cascading Multiswitch
  • Separate SAT & TERR Pro-Taps for ease of installation
  • Comes with earth bars fitted
  • Use As standalone when powered with a Whyte PSU
  • SAT Gain 10dB / TERR Gain 8dB
  • Gain Control on all inputs
  • Colour coded inputs & outputs
  • LED Power indicator & Inbuilt LTE filter
  • Comes with 9 F-Type couplers for easy connection to all Series 9 products
  • Uses receiver power to reduce demands on PSU
  • Switchable 12V DC Supply to Terr Input
  • Use Whyte Series 9 Launch Amplifiers & Splitters to build large scale IRS Systems.

Specifications:

Frequency Range: SAT 950-2150MHz | TERR 87-790MHz
4G LTE Filter: YES
Input (F-Type Female): 8 SAT + 1 TERR
Tap Outputs (F-Type Female): 12
Gain: SAT: =10dB | TERR:=8dB
Gain Control: SAT 10dB2dB | TERR 10dB2dB
Protean Tap Attenuation: SAT & TERR 0/-10/20dB
Return Loss SAT Trunk Input/Output: SAT >10dB/>10dB
TERR >8dB/8dB
Return Loss Tap Output: >8dB
Max Output Level: SAT (IMA -35dB) 95dBV
TERR (IMA -60dB) >85dBV
Isolation: Trunk - Trunk >28dB
Cross Polar: =25dB
Tap-Tap SAT >25dB
Tap-Tap TERR >21dB
Rejection =20dB
Impedance: 75 Ohms
Switching Commands: Legacy 13/18V / 22kHz Tone / DiSEqC
Power Supply Voltage: 18V DC
Powering: Via DC Input / Via HL and HH Input
Power Consumption (Max)@18V: 330mA
Power Indication: LED
Trunk Max Current Pass (per SAT line): 2A
Masthead Power Supply (Switchable): TERR Input Only 12V DC 100mA
Earth Terminal Bars (Tap Outputs): Fitted
Earth Lug: Up to 6mm Core
Dimensions Incuding Earth Bars (mm): 208 x 224 x 43
Weight: 1036g
