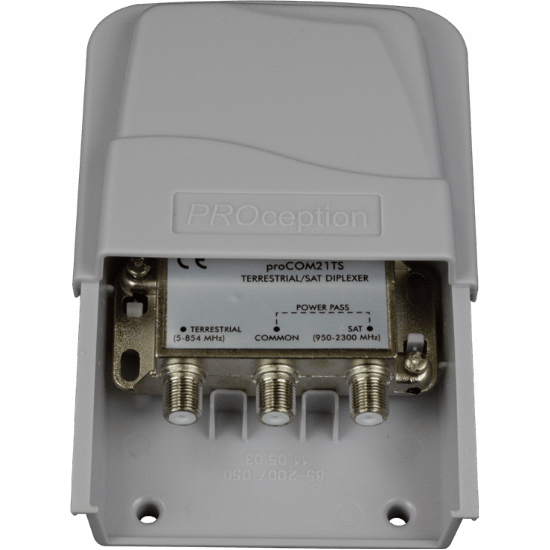

Terrestrial Satellite Masthead Diplexer F-Type

Product Code: PROCOM21TS

  • Combines or splits all terrestrial bands
  • With equipotential bonding point
  • Suitable for indoor or outdoor use
  • F-Type connectors
  • High quality to prevent picture loss
£20.95 inc vat
Lifetime guarantee on internally installed products Includes technical support

Payment methods accepted

Mastercard Visa AMEX PayPal Discover Apple Pay Google Pay

Product Description

Terrestrial Satellite Masthead Diplexer F-Type Screened - combines/splits all terrestrial bands (5-854MHz) SAT IF

Features:

  • High-isolation frequency-selective units for combining or splitting signals in the various terrestrial and satellite IF bands.
  • Very high isolation from SAT ports at UHF, avoids excessive signal degradation due to LNB noise.
  • Fully screened RF modules in robust diecast enclosures. Strong cast-in 'F' connectors.
  • Power pass (20V and 400mA max.) to the higher or highest frequency port.
  • Two NEW products add Band III coverage for DAB or TV to this range for the first time.
  • With equipotential bonding point.
  • Suitable for indoor or out door use.
  • PROCOM21TS Diplexer, combines or splits all terrestrial bands (5 - 854MHz) and SAT IF.
  • PROCOM31T Triplexer, combines or splits three individual terrestrial bands.

Technical Information:

Terrestrial Port Satellite Port
Operating frequency range 5 .. 854MHz 950 .. 2300MHz
Insertion loss =1.5dB1 =2.5dB2
Isolation in Band II (FM) - -
Isolation in band III (DAB or TV) - -
Isolation in Bands IV-V (UHF) - -
Isolation in terrestrial band - =36dB
Isolation in SAT band =36dB -
Line-power pass from common port No -
Line power-pass ratings 20V max. at 250mA max.

Signal Connector Type Type-F (IEC 60169-24)
Operating temperature range -20 .. +50C
EMC standard BS EN 50083-2:2001 (Class B)

Product
Type
HF RTN
VHF B II
VHF B III
UHF B IV-V
Terr.1 Wide
SAT IF
Isolation VHF/UHF2
Isolation UHF/SAT2
PROCOM21TS
Diplexer
-
-
-
-
?
*
-
=50dB
PROCOM31T
Triplexer
?
?
*
-
-
=30dB
-

* Return band: 5 - 30MHz. 1 All 'terrestrial' bands: 5 - 854MHz. 2 See full data sheet for detailed insertion loss and isolation info.

Symbols: ? dedicated band input; band covered by UHF input; * band input with power pass to COM port.


1.= 2.8dB in band edge region 780 .. 854MHz 2.= 5.5dB in band edge region 950 .. 1100MHz

3.= 0.7dB in return-path band 5 .. 30MHz 4. Applied over 5 .. 854MHz - typical performance >60dB

5.= 23dB in band edge region 950 .. 1100MHz 6.= 2.7dB in band edge region 780 .. 862MHz

Product Description

Terrestrial Satellite Masthead Diplexer F-Type Screened - combines/splits all terrestrial bands (5-854MHz) SAT IF

Features:

  • High-isolation frequency-selective units for combining or splitting signals in the various terrestrial and satellite IF bands.
  • Very high isolation from SAT ports at UHF, avoids excessive signal degradation due to LNB noise.
  • Fully screened RF modules in robust diecast enclosures. Strong cast-in 'F' connectors.
  • Power pass (20V and 400mA max.) to the higher or highest frequency port.
  • Two NEW products add Band III coverage for DAB or TV to this range for the first time.
  • With equipotential bonding point.
  • Suitable for indoor or out door use.
  • PROCOM21TS Diplexer, combines or splits all terrestrial bands (5 - 854MHz) and SAT IF.
  • PROCOM31T Triplexer, combines or splits three individual terrestrial bands.

Technical Information:

Terrestrial Port Satellite Port
Operating frequency range 5 .. 854MHz 950 .. 2300MHz
Insertion loss =1.5dB1 =2.5dB2
Isolation in Band II (FM) - -
Isolation in band III (DAB or TV) - -
Isolation in Bands IV-V (UHF) - -
Isolation in terrestrial band - =36dB
Isolation in SAT band =36dB -
Line-power pass from common port No -
Line power-pass ratings 20V max. at 250mA max.

Signal Connector Type Type-F (IEC 60169-24)
Operating temperature range -20 .. +50C
EMC standard BS EN 50083-2:2001 (Class B)

Product
Type
HF RTN
VHF B II
VHF B III
UHF B IV-V
Terr.1 Wide
SAT IF
Isolation VHF/UHF2
Isolation UHF/SAT2
PROCOM21TS
Diplexer
-
-
-
-
?
*
-
=50dB
PROCOM31T
Triplexer
?
?
*
-
-
=30dB
-

* Return band: 5 - 30MHz. 1 All 'terrestrial' bands: 5 - 854MHz. 2 See full data sheet for detailed insertion loss and isolation info.

Symbols: ? dedicated band input; band covered by UHF input; * band input with power pass to COM port.


1.= 2.8dB in band edge region 780 .. 854MHz 2.= 5.5dB in band edge region 950 .. 1100MHz

3.= 0.7dB in return-path band 5 .. 30MHz 4. Applied over 5 .. 854MHz - typical performance >60dB

5.= 23dB in band edge region 950 .. 1100MHz 6.= 2.7dB in band edge region 780 .. 862MHz

Technical Specification

IEC or F Type

F Type

Number of Outputs

1

Number of Inputs

2

Internal or External

External

Width

250mm

Depth

110mm

Height

110mm

Weight

0.18Kg
