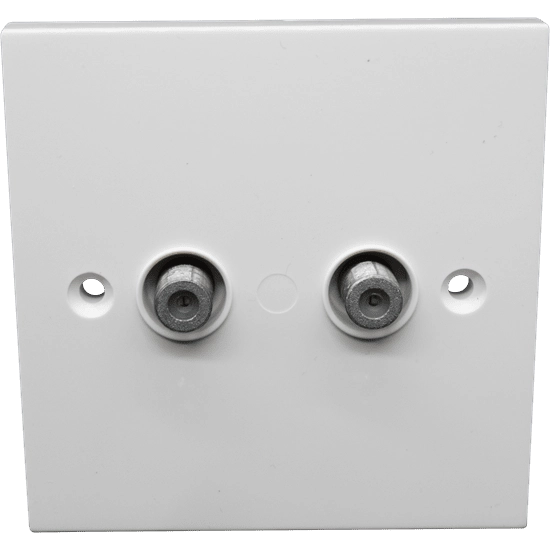

Double F-Type Female Outlet Plate: Slim Line, Shielded
Product Code: PROSLO22F
- Dual F output for satellite points
- White
- Non-isolated allows power through
- Fully screened
- Slim line - fits in 16mm back box
Payment methods accepted
Product Description
Slim Line Double F-Type Female Outlet Plate, Shielded DC Pass (Non Isolated). Fits in 16mm 1 - gang Box.
This fully-screened unit satisfies the need for outlets which will fit into slimmer mounting boxes than previous designs. The diecast module achieves high screening integrity without the need for an inner spring-fingered cage and will fit into a 16 mm 'plaster-depth' flush mounting box.
Features:
- Fully-screened non-isolated twin 'F-type' outlet plate, independently certified to BS EN 50083-2.
- Fits 16 mm deep flush or surface mounting boxes.
- Particularly suitable for digital upgrades, allows unscreened outlets to be replaced where complete rewiring is not a practical proposition.
- A significant reduction in impulsive interference to digital terrestrial TV reception can be obtained when old unscreened and isolated outlets are replaced.
Installer-friendly:
- Industry-standard 2-level cable stripping dimensions, as used for crimp 'F' connectors.
- Accessible screw terminal connection for cable centre conductor; no blind push-fit operations.
- No fiddly inner screening cage.
- Supplied with dog-point fixing screws for easy location in the mounting box lugs.
| Technical Information: |
| Product Code | Frequency Range | Insertion Loss | Return Loss | Connectors | Mounting Box Depth |
| PROSLO22F | DC - 2300MHz | 0.5dB | 14dB | F | 16 mm min* |
Related products
Product Description
Slim Line Double F-Type Female Outlet Plate, Shielded DC Pass (Non Isolated). Fits in 16mm 1 - gang Box.
This fully-screened unit satisfies the need for outlets which will fit into slimmer mounting boxes than previous designs. The diecast module achieves high screening integrity without the need for an inner spring-fingered cage and will fit into a 16 mm 'plaster-depth' flush mounting box.
Features:
- Fully-screened non-isolated twin 'F-type' outlet plate, independently certified to BS EN 50083-2.
- Fits 16 mm deep flush or surface mounting boxes.
- Particularly suitable for digital upgrades, allows unscreened outlets to be replaced where complete rewiring is not a practical proposition.
- A significant reduction in impulsive interference to digital terrestrial TV reception can be obtained when old unscreened and isolated outlets are replaced.
Installer-friendly:
- Industry-standard 2-level cable stripping dimensions, as used for crimp 'F' connectors.
- Accessible screw terminal connection for cable centre conductor; no blind push-fit operations.
- No fiddly inner screening cage.
- Supplied with dog-point fixing screws for easy location in the mounting box lugs.
| Technical Information: |
| Product Code | Frequency Range | Insertion Loss | Return Loss | Connectors | Mounting Box Depth |
| PROSLO22F | DC - 2300MHz | 0.5dB | 14dB | F | 16 mm min* |
Technical Specification
Width
20mm
Depth
85mm
Height
85mm
Weight
0.09kg
