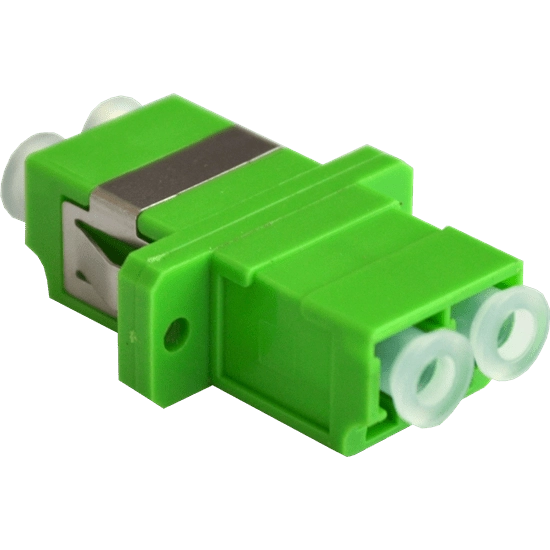

Duplex LC/APC Fibre Adaptor, Single Mode With Flange

Product Code: BFC-LCA-DX-F

  • LC duplex coupler with flange
  • Green colour coded
  • Protective dust cap
Duplex LC/APC Fibre Adaptor, Single Mode With Flange
Duplex LC/APC Fibre Adaptor, Single Mode With Flange
Duplex LC/APC Fibre Adaptor, Single Mode With Flange
£4.51 inc vat
Lifetime guarantee on internally installed products Includes technical support

Payment methods accepted

Mastercard Visa AMEX PayPal Discover Apple Pay Google Pay

Product Description

Single Mode Fibre Optical OS2 Duplex Adaptor/Coupler LC/APC Female to Female - Green with Flange

The Single Mode Fibre Optical OS2 Duplex Adaptor/Coupler LC/APC Female to Female in green with a flange is designed to provide a reliable and efficient connection for single-mode fibre optic cables. It serves as a termination or linking device, ensuring minimal loss during light transmission.

This adaptor is particularly useful when working with pre-terminated fibre and equipment that utilises LC/APC connectors.

Features:

  • Single Mode Duplex Coupler
  • Low Insertion Loss
  • Protective Dust Cap to Maintain Interior Cleanliness
  • Tool-less Snap-in Installation with Stainless Steel Clips

Applications:

  • CATV Distribution and DOSIS Data Transmission
  • SAT-IF and DTT Distribution
  • Other Fibre Optic Communication Systems

Technical Information:

Part Code BFC-LCA-DX-F BFC-LCA-DX-N BFC-LCA-QD-F
Connector Type A Optical LC/APC
Connector Type B Optical LC/APC
Body Type Duplex Duplex Quadplex
Mounting Type Flanged Flangeless Flanged
Colour Green Green Green
Insertion/Removal Cycles 1000 times
Insertion Loss ≤0.2dB
Operating Temperature -20~70°C

Product Description

Single Mode Fibre Optical OS2 Duplex Adaptor/Coupler LC/APC Female to Female - Green with Flange

The Single Mode Fibre Optical OS2 Duplex Adaptor/Coupler LC/APC Female to Female in green with a flange is designed to provide a reliable and efficient connection for single-mode fibre optic cables. It serves as a termination or linking device, ensuring minimal loss during light transmission.

This adaptor is particularly useful when working with pre-terminated fibre and equipment that utilises LC/APC connectors.

Features:

  • Single Mode Duplex Coupler
  • Low Insertion Loss
  • Protective Dust Cap to Maintain Interior Cleanliness
  • Tool-less Snap-in Installation with Stainless Steel Clips

Applications:

  • CATV Distribution and DOSIS Data Transmission
  • SAT-IF and DTT Distribution
  • Other Fibre Optic Communication Systems

Technical Information:

Part Code BFC-LCA-DX-F BFC-LCA-DX-N BFC-LCA-QD-F
Connector Type A Optical LC/APC
Connector Type B Optical LC/APC
Body Type Duplex Duplex Quadplex
Mounting Type Flanged Flangeless Flanged
Colour Green Green Green
Insertion/Removal Cycles 1000 times
Insertion Loss ≤0.2dB
Operating Temperature -20~70°C

Technical Specification

A Connector Type

LC/APC

B Connector Type

LC/APC

Fibre

Passive Optical Network (PON) Fibre

Width

29mm

Depth

22mm

Height

9.3mm

Frequently Asked Questions

"Duplex" indicates that the adaptor has two ports, allowing for the connection of two fibre optic cables. This configuration enables bidirectional communication or the connection of two separate fibres for applications such as transmit and receive.
LC/APC refers to the type of fibre optic connector used in the adaptor. LC stands for Lucent Connector, which is a small form-factor connector commonly used in fibre optic networks. APC indicates that the connector has an Angled Physical Contact polish, reducing back reflection.
"With Flange" indicates that the adaptor includes a mounting flange for secure installation onto a panel or surface. The flange provides stability and support, ensuring proper alignment and connection of the fibre optic cables.
