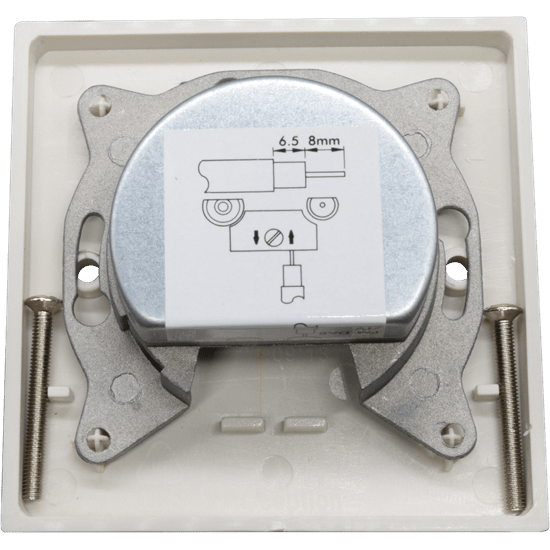

Diplexed Outlet Plate TV / FM, 'IEC' Connectors Shielded. Fits 25mm box
Product Code: PROOUT12C
- TV & FM/DAB combined outputs
- White
- Non-isolated allows power through
- Fully screened
- Fits 35mm back box
Payment methods accepted
Product Description
Diplexed Outlet Plate TV / FM, 'IEC' Connectors Shielded
A comprehensive range of high-quality outlet plates designed to cover the majority of the UK applications. All types are non-isolated, fully screened and fit standard 35 mm deep mounting boxes to BS 4662 dimensions.
Features:
- PROOUT12C and PROOUT13: traditional 2-way Radio/TV and 3-way Radio/TV/SAT plates. All radio outlets cover Bands II - III for FM and DAB.
Technical Information:
| Product Code | RF Cables | RF Outlets | Wide-band | FM & DAB | UHF TV1 | SAT | SAT 2 | Return Inlet | Phone Jack2 |
| PROOUT12C | 1 | 2 | - | * | - | - | - | - |
1 TV connection also covers the return path band (5 - 60MHz) in all cases. 2 Telephone jacks are secondary type.
Symbols: covers this band; * covers this band or includes this feature and provides DC continuity.
Product code suffix C or F indicates connector type IEC or F; PROOUT13 and RT types have mixed connectors.
Refer to full data sheet for more detailed information, including insertion losses.
