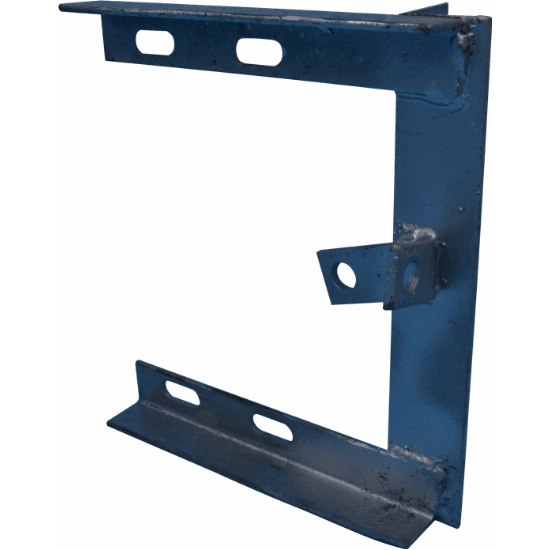

9" Welded Chimney Lashing Bracket Galvanized
Product Code: CB2G
- For mounting on the chimney corner
- Galvanised to prevent weathering
- Install using a lashing kit
- Suitable for TV & Wi-Fi aerials
Product Description
9"Welded Chimney Lashing Bracket Galvanised
Features:
- This mount has 30 x 30 x 3mm arms and 40 x 40 x 3mm angle back strap for additional strength.
- J-bolt tab for easy fitting and tightening of the lashing.
- Pressed galvanised chimney version for cost effective requirements (CB1B).
- Painted version available CB2.
- Use with 10-13mm ratchet spanner for ease of install (PROSPAN10-13).
Technical Information:
Product | Painted or Galvanised | Length Back (mm) | Length Arms (mm) | Stand Off (mm) | Kit |
CB2G | Galvanised | 229 | 191 | 95 | K7 or K7F |
Welded brackets are to BS EN ISO 15614 for strong and secure joints and where galvanised finish is available this is to BS EN 1461 (part code suffix G indicates galvanised version).
Technical Specification
Painted or Galvanised
Galvanised
Bracket Arm Size
228.6mm
Bracket Base Size
228.6mm
