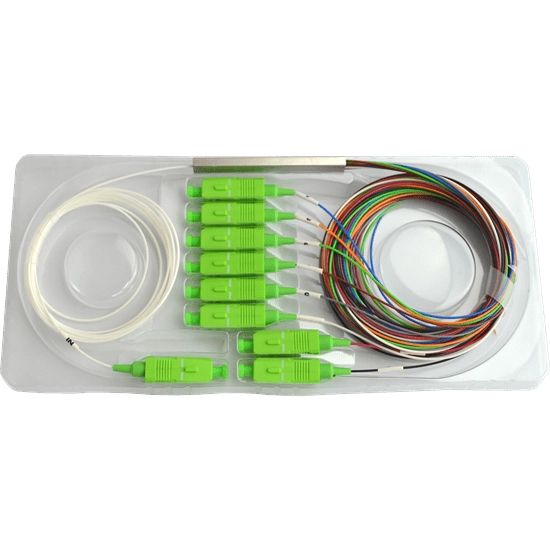

8-Way 2m Fibre Mini Splitter Simplex SC/APC Single Mode

Product Code: BFS-MINI-SCA-8-2

  • 8-Way 2m PLC Mini Splitter SC/APC
  • Flexible and Low Loss Design
  • Integrates into Containment Boxes
  • Suitable to be Rack Mounted
£45.54 inc vat
Lifetime guarantee on internally installed products Includes technical support

Payment methods accepted

Mastercard Visa AMEX PayPal Discover Apple Pay Google Pay

Product Description

8-Way 2m Single Mode Simplex Fibre Optical Mini PLC Splitter SC/APC

PLC (Planar Lightwave Circuit) fibre optic splitters are an essential component of any optical network. These devices can be used to divide a single incoming signal into multiple outputs, enabling the loading and transmission of data over large distances. This helps to significantly reduce cost and maintenance time in networks as fewer components are required for the installation and configuration process.

PLC splitters are made from Fused Biconical Tapered (FBT) technology which minimises insertion loss and crosstalk, resulting in greater stability, lower bit-error rates, and improved system performance. They work by separating light with an angle polished connector at one end which allows the optical signal to enter into one port and be divided amongst multiple outputs.

They are widely used in Passive Optical Networks (PONs) for FTTH (Fibre-To-The-Home) applications. They offer reliability, high isolation between output ports, low insertion loss and good channel uniformity. They are compact and light-weight, offering an neat and easy installation making them ideal for a wide range of applications.

Ultimately, the splitters offer reliable performance without compromising on quality of service, making them the preferred choice for long-distance connectivity solutions.

We offer a range of reliable PLC Optical Mini Splitters that offering flexible installation options. They are designed to be installed in either our range of IP65 containment boxes or our range of  network rack mount 1U or 2U sliding trays for 19" cabinets.

Features:

  • Single Mode Simplex OS2 SC/APC Fibre
  • 8-Way module with colour coded cables
  • For use with our containment boxes

Applications:

  • CATV distribution and DOSIS data transmission
  • SAT-IF and DTT distribution
  • Other fibre optic communication systems

Technical Information:

Product Code
BFS-MINI-SCA-8-2
ConnectorsOptical SC/APC
Inputs
1
Outputs8
Fibre Grade
G6527A1
Wavelength
1260/1650nm
Insertion Loss
<10.3/10.7dB
Loss Uniformity<0.8dB
Polarisation Dependant Loss<0.1dB
Return Loss
>55/60dB
Directivity>55dB
Wavelength Dependant Loss<0.3dB
Operating Temperature
-40~85°C

Product Description

8-Way 2m Single Mode Simplex Fibre Optical Mini PLC Splitter SC/APC

PLC (Planar Lightwave Circuit) fibre optic splitters are an essential component of any optical network. These devices can be used to divide a single incoming signal into multiple outputs, enabling the loading and transmission of data over large distances. This helps to significantly reduce cost and maintenance time in networks as fewer components are required for the installation and configuration process.

PLC splitters are made from Fused Biconical Tapered (FBT) technology which minimises insertion loss and crosstalk, resulting in greater stability, lower bit-error rates, and improved system performance. They work by separating light with an angle polished connector at one end which allows the optical signal to enter into one port and be divided amongst multiple outputs.

They are widely used in Passive Optical Networks (PONs) for FTTH (Fibre-To-The-Home) applications. They offer reliability, high isolation between output ports, low insertion loss and good channel uniformity. They are compact and light-weight, offering an neat and easy installation making them ideal for a wide range of applications.

Ultimately, the splitters offer reliable performance without compromising on quality of service, making them the preferred choice for long-distance connectivity solutions.

We offer a range of reliable PLC Optical Mini Splitters that offering flexible installation options. They are designed to be installed in either our range of IP65 containment boxes or our range of  network rack mount 1U or 2U sliding trays for 19" cabinets.

Features:

  • Single Mode Simplex OS2 SC/APC Fibre
  • 8-Way module with colour coded cables
  • For use with our containment boxes

Applications:

  • CATV distribution and DOSIS data transmission
  • SAT-IF and DTT distribution
  • Other fibre optic communication systems

Technical Information:

Product Code
BFS-MINI-SCA-8-2
ConnectorsOptical SC/APC
Inputs
1
Outputs8
Fibre Grade
G6527A1
Wavelength
1260/1650nm
Insertion Loss
<10.3/10.7dB
Loss Uniformity<0.8dB
Polarisation Dependant Loss<0.1dB
Return Loss
>55/60dB
Directivity>55dB
Wavelength Dependant Loss<0.3dB
Operating Temperature
-40~85°C

Technical Specification

Width

95mm

Depth

210mm

Height

12mm

Weight

0.05Kg
