Cranked 3ft x 1in x 18g (914x25.4x1.2mm) Aluminium Alloy Pole
Product Code: A1
- 45° cranked bend for gutters/facias
- Aluminium seam welded for strength
- Ideal for installs that need stand off
- Suitable for TV & Wi-Fi aerials
Payment methods accepted
Related products
Alternative products
Product Description
3ft 1in Cranked Alloy Pole
This 3ft 1in cranked alloy pole is designed for mounting TV aerials and satellite dishes where additional clearance is required around rooflines, eaves or other obstructions. The cranked profile offsets the upper section of the pole away from the mounting point, helping provide clearance where a straight pole would not be suitable.
Manufactured from seam-welded EN-AW-5449A alloy tube for added strength, the pole has a 25.4 mm diameter and 1.2 mm wall thickness.
For further guidance on selecting a suitable mast or pole, please refer to our Correct Choice of Masts page. For help selecting the appropriate mounting bracket, please refer to our Bracket Selection Guide.
Features
-
Cranked design provides clearance around eaves and rooflines
-
Suitable for TV aerial and satellite installations
-
Seam-welded EN-AW-5449A alloy tube
-
25.4 mm diameter with 1.2 mm wall thickness
- 45° crank for offset mounting
Applications
Suitable for domestic and professional aerial or satellite installations where clearance is required between the mounting point and an eave, roof edge or similar obstruction. The cranked section provides an offset mounting position while allowing the pole to be secured using a compatible bracket.
Please note: The stated pole length is the overall length of the pole before cranking. Once cranked, the finished pole will have a shorter vertical height than the stated length.
Technical Information
Product |
Length (ft/m) |
Diameter ("/mm) |
Gauge (g/mm) |

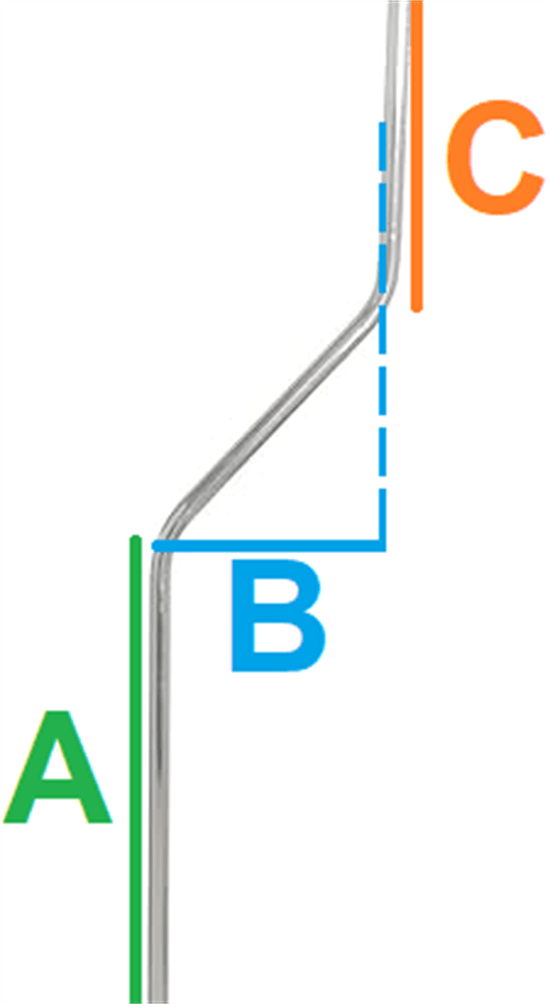

Crank Dimensions (a x b x c mm) |
Crank Angle (°) |
V Bolts |
A1 |
3 / 0.91 |
1 / 25.4 |
18 / 1.2 |
260 x 350 x 280 |
45 |
AC2 |
Standoff figures are approximate.
Technical Specification
Aluminium or Steel
Aluminium
Straight, Cranked, Single Bend or Swaged
Cranked
Mast Length
3 ft / 914.4 mm
Mast Diameter
1 in / 25.4 mm
Mast Gauge
18g
Width
25mm
Depth
375mm
Height
540mm
Weight
0.22kg
