Quick Add

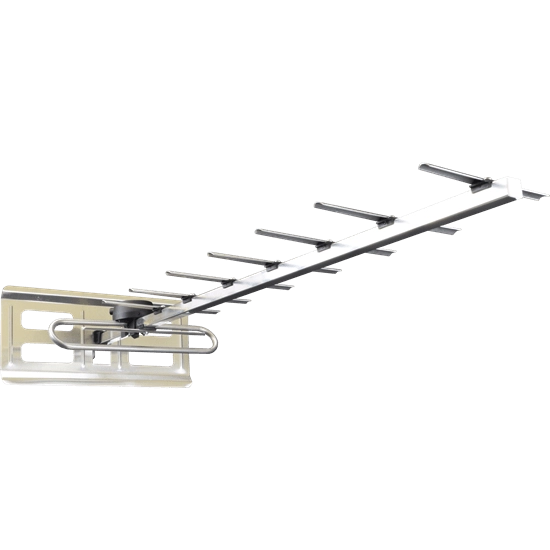

10 Element Contract Aerial, Group K, Channels 21-48
Product Code: CR10K
- 10 element TV aerial
- Group K working on Ch. 21-48
- Low gain aerial for strong signal
- Saddle & Clamp
- Comes with aerial clamp
Payment methods accepted
Product Description
10 Element Contract PCB Balun Group K Channels 21-48 (474-690MHz) Bagged
Suitable for all Freeview™ TV aerial applications in strong signal areas. Digital Terrestrial Television (DTT) reception providers include Freeview™;, Youview™ and BT Vision™;.
Features:
- For strong reception areas.
- Traditional contract Yagi aerial with balun for improved impedance matching of the cable.
- Group K (grey tip) working on channels 21-48 470-680MHz.
- Easy slide mounting bracket for aerial to fit mast diameter from 1" (25.4mm) to 2" (50.8mm) allows both horizontal and vertical polarisiation.
- Use with 8-10mm ratchet spanner (PROSPAN8-10) to easily tighten nuts on sliding clamp.
- Steel parts are protected either with BZP (bright zinc plating) or manufactured from Hot Dip Zinc coated strip.
- Plastic parts are UV stabilised.
- Aerials packaged bulk in bags with full instructions included.
- Use with our range of PROception distribution amplifiers to watch Freeview™ or Sky™ on multiple TVs.
Technical Information:
Product | Connection | Group | Elements | Gain (dBd) | Gain (dBi) | Beamwidth (Deg.) | Length (mm) |
CR10K | Saddle and Clamp | K (Grey) | 8 | 7-10 | 9.2-12.2 | 26 | 870 |
Related products
Alternative products
Product Description
10 Element Contract PCB Balun Group K Channels 21-48 (474-690MHz) Bagged
Suitable for all Freeview™ TV aerial applications in strong signal areas. Digital Terrestrial Television (DTT) reception providers include Freeview™;, Youview™ and BT Vision™;.
Features:
- For strong reception areas.
- Traditional contract Yagi aerial with balun for improved impedance matching of the cable.
- Group K (grey tip) working on channels 21-48 470-680MHz.
- Easy slide mounting bracket for aerial to fit mast diameter from 1" (25.4mm) to 2" (50.8mm) allows both horizontal and vertical polarisiation.
- Use with 8-10mm ratchet spanner (PROSPAN8-10) to easily tighten nuts on sliding clamp.
- Steel parts are protected either with BZP (bright zinc plating) or manufactured from Hot Dip Zinc coated strip.
- Plastic parts are UV stabilised.
- Aerials packaged bulk in bags with full instructions included.
- Use with our range of PROception distribution amplifiers to watch Freeview™ or Sky™ on multiple TVs.
Technical Information:
Product | Connection | Group | Elements | Gain (dBd) | Gain (dBi) | Beamwidth (Deg.) | Length (mm) |
CR10K | Saddle and Clamp | K (Grey) | 8 | 7-10 | 9.2-12.2 | 26 | 870 |
Technical Specification
UHF, DAB or FM
UHF
Saddle & Clamp or F Type
Saddle & Clamp
Aerial Group
K
Good, Moderate or Poor Signal Aerial
GoodSignal Areas
Boxed or Bagged
Bagged
Width
1200mm
Depth
460mm
Height
16mm
Weight
0.42kg
