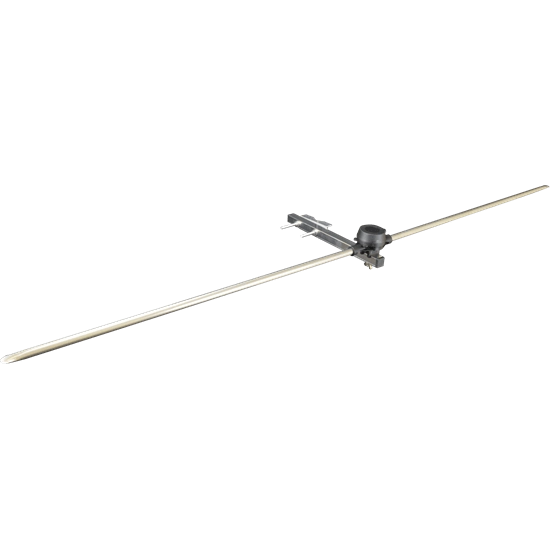

1 Element FM Aerial Open Dipole

Product Code: FM1

  • Suitable for indoor or outdoor use
  • B& VHF-FM 88-108MHz
  • 1 Element
  • Saddle & Clamp


£17.99 inc vat
Lifetime guarantee on internally installed products Includes support

Payment methods accepted

Mastercard Visa American Express PayPal Discover Apple Pay Google Pay

Product Description

1 Element FM Open Dipole

Features:

  • Suitable for VHF FM Radio reception.
  • Designed for horizontally mounted installations.
  • Directional design.
  • For good reception areas.
  • Element design utilises solid plastic securing clips onto a strong boom section.
  • Mounting bracket for aerial will fit mast diameter from 1" (25.4mm) to 2" (50.8mm).
  • Packed one per bag.

Technical Information:

Product
Band
(MHz)
Elements
Gain
(dBd)
Gain
(dBi)
Beamwidth
(°)
Length
(mm)
FM1
VHF-FM 88-108
1
1
2.2
-
300

Product Description

1 Element FM Open Dipole

Features:

  • Suitable for VHF FM Radio reception.
  • Designed for horizontally mounted installations.
  • Directional design.
  • For good reception areas.
  • Element design utilises solid plastic securing clips onto a strong boom section.
  • Mounting bracket for aerial will fit mast diameter from 1" (25.4mm) to 2" (50.8mm).
  • Packed one per bag.

Technical Information:

Product
Band
(MHz)
Elements
Gain
(dBd)
Gain
(dBi)
Beamwidth
(°)
Length
(mm)
FM1
VHF-FM 88-108
1
1
2.2
-
300

Technical Specification

UHF, DAB or FM

FM

Saddle & Clamp or F Type

Saddle & Clamp

Good, Moderate or Poor Signal Aerial

Good

Boxed or Bagged

Bagged

Frequently Asked Questions

Commonly called a saddle and clamp connection.

1)  Remove the black plastic cap from the dipole and push the cable through the cable guide in the lid (ensure you push it through the right way - the bare end of the cable should be on the inside of the lid).

2)  Prepare the cable as follows (Saddle and clamp connection):

  • Remove approx 12mm of the black outer sheath to expose the braid (and foil if double screened)
  • Expose approx 8mm of the central copper core of the cable by cutting back the braid and plastic inner
  • Loosen the  the braid clamp on the dipole and the crew on top of the centre terminal.
  • Pass the cable under the braid clamp so the central core is inside the hole in the centre terminal and the braid clamp is on the braid and foil (if double screened)
  • Tighten the central post screw to hold the core in place and tighten the braid clamp to hold the cable securely. Ensure the braid is not in contact with the central core
  • Feed the cap over the cable and fasten on the the base. Ensure good even fit.
coax install

coax install
