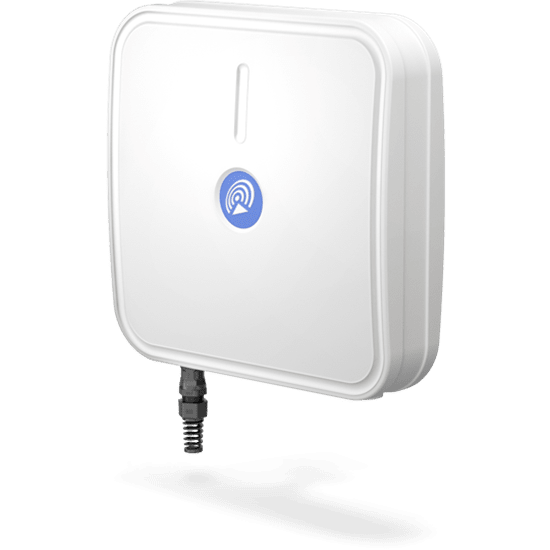

QuMax xPOLDirectional Enclosure RUT+WIFI

The QuMAX eXtra Range All (AXRA) is a 7dB directional LTE antenna, the most powerful of all QuWireless antennas, that's ideal for 4G installations in which unobstructed line-of-sight to a mast can be achieved regardless of distance. As well as 4G/LTE, the AXRA also features embedded WiFi (2.4GHz and 5GHz dual-band), GPS and Bluetooth antennas. This gives the antenna extreme versatility and efficiency for a wide variety of solutions, being able to excel in any scenario from standard domestic 4G networks to GPS tracking on vehicles (although its directional nature necessitates a static location when actively in use).

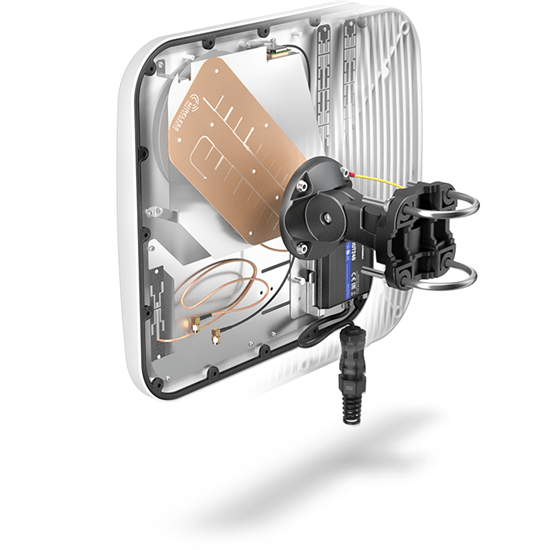

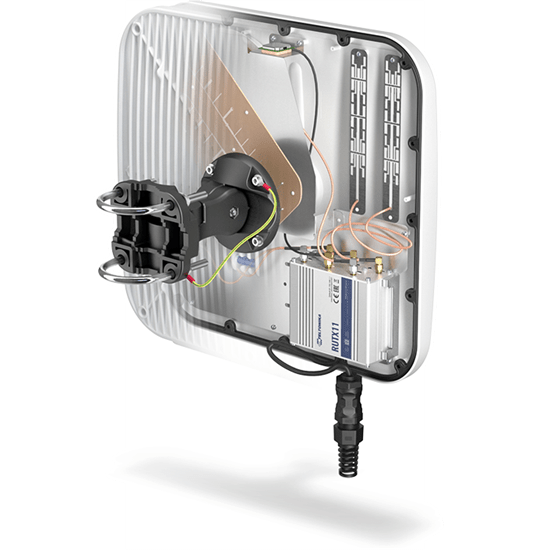

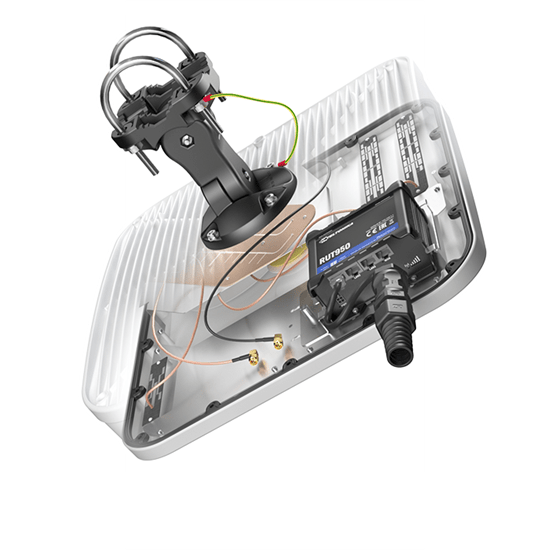

The AXRA's versatility also extends into its usage as an IP67-rated waterproof enclosure for 4G routers: while most other QuWireless antenna/enclosure equipment is designed with one specific Teltonika router model in mind, the AXRA's increased size renders it capable of enclosing almost any 4G router in the Teltonika range. This support includes the RUT200/240/241/900/901/950/951/955/956/X09/X11. The router itself will be powered via 9-30v passive PoE (Power over Ethernet), which can be run through standard Ethernet cable up to a distance of about 45-50 metres.

The AXRA provides great flexibility when deciding on an installation location because it avoids the usual limitation of the antenna needing to be within 5 metres of a router to fit within the maximum recommended cable length since the router is positioned right with the antenna anyway. This improves the general performance, as it eliminates any loss of signal over cabling (since the router connects directly to the antenna without a length of cable needed) and it means the antenna can be mounted in the most optimal location possible, which for a directional antenna is typically as high as is feasible.

The AXRA's robustness allows it to perform well in industrial and marine environments as well as standard domestic ones.

* Please be aware not all Teltonika RUT Routers have Dual-Band WiFi or Bluetooth and GPS functionality, if you decide to use a Teltonika RUT Router without these features, the Dual-Band functionality, Bluetooth and GPS antennas on the QuMax would remain unused. View the Teltonika Product Comparison chart to help you decide which Router is best for you.

A lightning protector may want to be considered on the Ethernet cable leading from this antenna in order to protect the internal circuit of the building/vehicle in the extremely unlikely event that the antenna itself is directly struck by lightning.
