QuMax XR2 kit for RUTX12

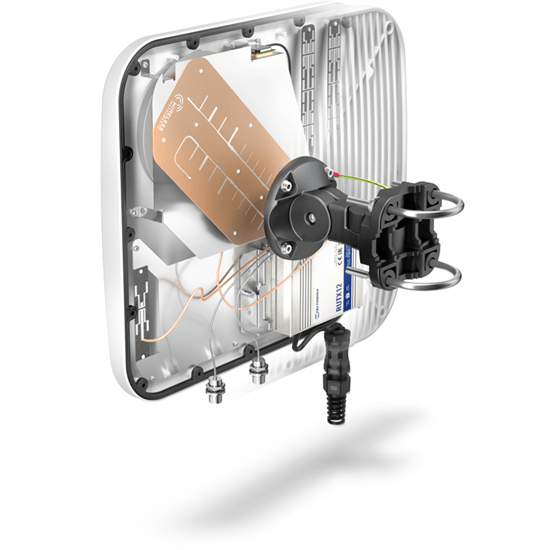

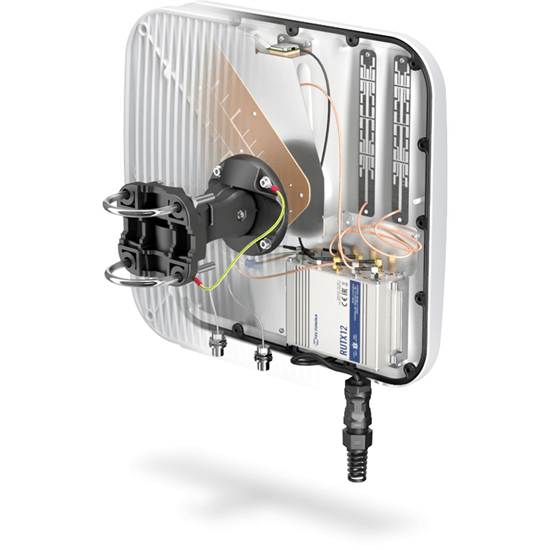

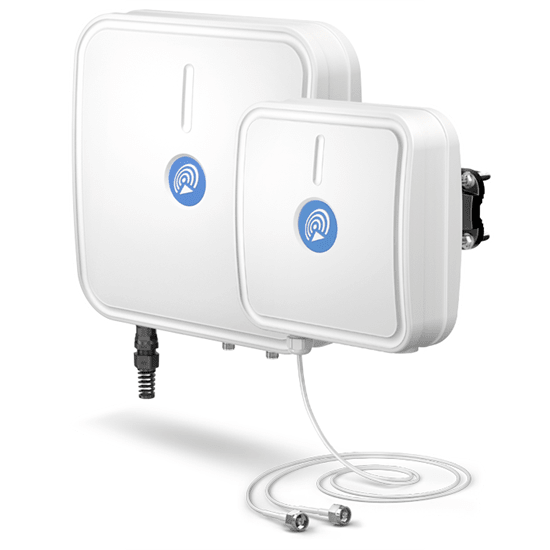

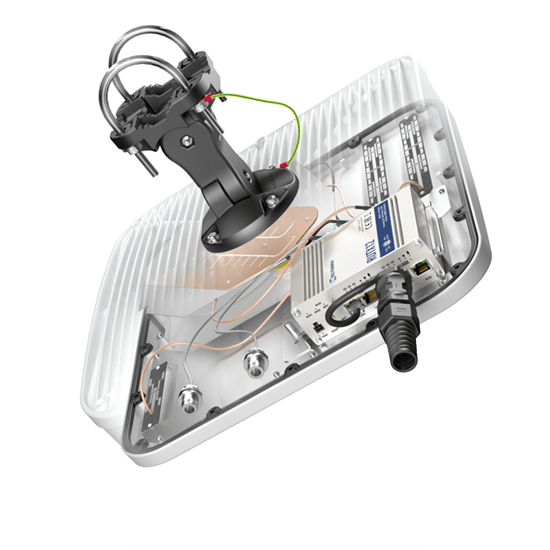

The QuMax XR2 is a bi-directional LTE eXtra Range antenna set (two separate antennas) to connect to two different LTE base station (it can also be connected to one base station in order to obtain a greater share of the transfer from that base station). The main antenna additionally has built-in WiFi dual-band, GPS and Bluetooth antennas, 2x N type socket connectors for the second LTE antenna and a space to install the RUTX12 router inside the antenna enclosure. The second antenna is LTE Extra Range directional antenna only and is in a smaller casing. The QuMax XR2 set is dedicated to long-range connections from the LTE base station, and to two different base stations, which gives optimal use of functions such as load balancing and carrier aggregation.

A lightning protector may want to be considered on the Ethernet cable leading from this antenna in order to protect the internal circuit of the building/vehicle in the extremely unlikely event that the antenna itself is directly struck by lightning.
