QuSpot Omni Enclosure for RUTX09/RUTM09

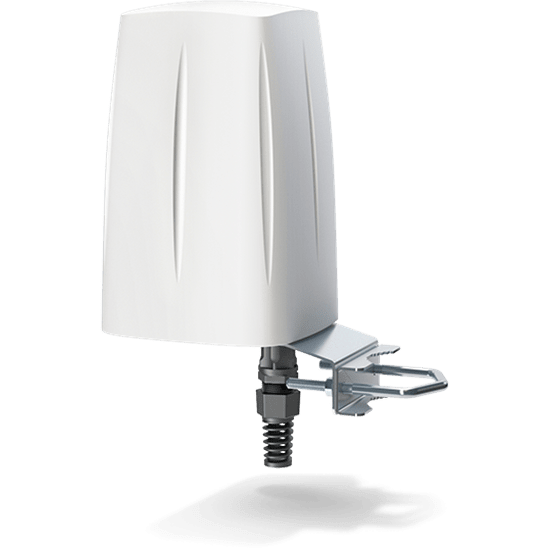

The QuSpot AX09S is a 4dB Omni-directional 4G and GPS antenna that simultaneously acts as a waterproof enclosure for the Teltonika RUTX09 / RUTM09 4G router. This antenna boasts a robust IP67-rated design, capable of operating flawlessly in both rural and urban environments as well as in coastal and marine locations (i.e. boats and marinas) and during adverse weather conditions. The AX09S is also fully capable of being mounted on moving vehicles such as campervans.

As an Omni-directional antenna covering all the primary UK frequency bands (0.694 - 960 GHz, 1.700 - 2.200 GHz, 2.200 - 2.700 GHz), the AX09S can be relied on to provide a mobile LTE and GPS connection for your equipment regardless of where you are in the UK and regardless of your proximity to a mobile mast. When used as an enclosure for its router, this antenna also avoids most of the logistical issues relating to router proximity that other 4G antennas run into, as there are no issues with this antenna associated with loss over cable length. This allows for greater flexibility when it comes to mounting it, both in static installations and on moving vehicles.

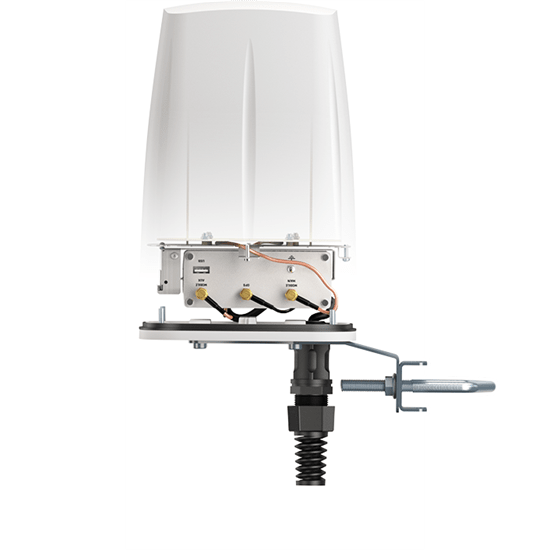

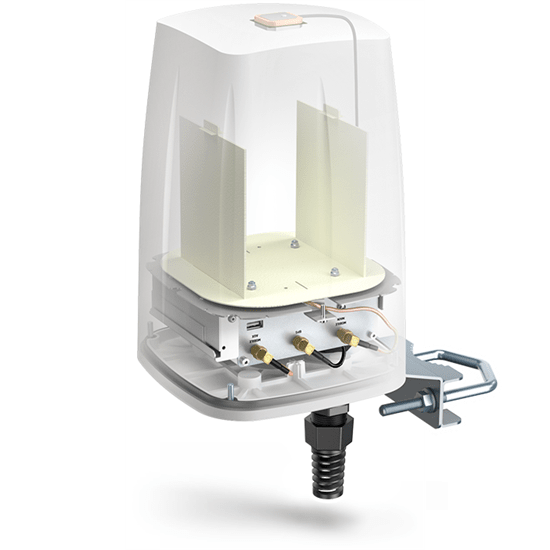

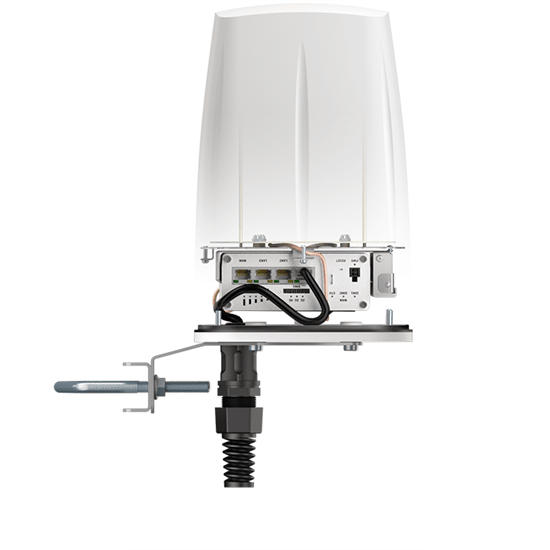

The AX09 is constructed specifically to perfectly fit the RUTX09 / RUTM09 router inside of it. The RUTX09 / RUTM09 will be powered via passive Power over Ethernet (PoE) which allows it to be located up to 50 metres away from the nearest power supply, offering great flexibility when it comes to finding the optimal mounting location (especially for out-of-the-way systems such as CCTV, APs, etc.). The RUTX09 / RUTM09 is a router that's particularly suited for being enclosed in this QuSpot antenna due to its dual-SIM capabilities, allowing it to save on roaming costs when used with a vehicle, and due to how it doesn't utilise WiFi.
