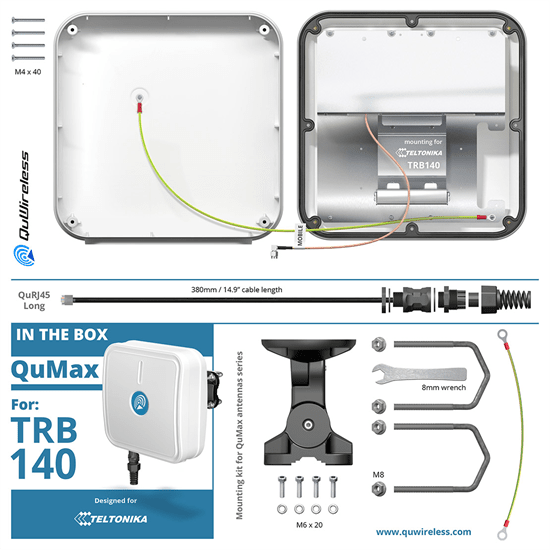

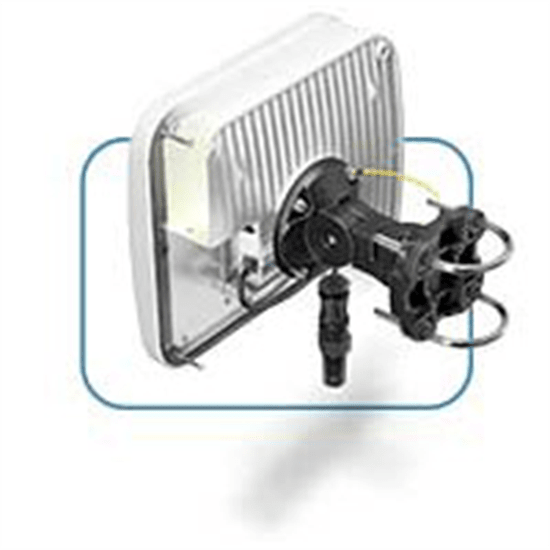

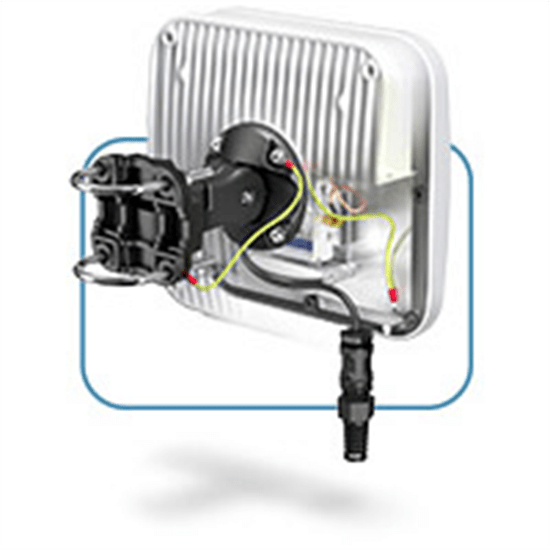

QuMax Omni Enclosure for TRB140

The QuMax A140M-A is a 6dB directional 4G antenna that simultaneously acts as a waterproof enclosure for the Teltonika TRB140, with housing, an industrial IoT gateway. This enclosure's robust IP67-rated design, in conjunction with the directional nature of the antenna, guarantees that the TRB140 can be used with the most optimal performance possible regardless of environmental factors as long as a mobile mast is visible with clear line-of-sight.

The A140M is a strong directional antenna, with a dB signal strength ranging from 4-6dB and covering the primary UK frequency bands (0.694 - 960 GHz, 1.700 - 2.200 GHz, 2.200 - 2.700 GHz). Direct line-of-sight to a mast is required in order for this antenna to operate properly: this can sometimes be difficult to achieve with many other directional antennas due to the signal loss over lengthy mobile antenna cables. This antenna avoids that problem altogether by the nature of the cabling and the LTE equipment all being contained within the antenna's frame itself, meaning it can be mounted as high up and far away as it needs to be to achieve line-of-sight without having to worry about how close it is to anything else.

The A140M is constructed specifically to perfectly fit the TRB140 with housing inside of it. This TRB140 will be powered via passive Power over Ethernet (PoE) which allows it to be located up to 50 metres away from the nearest power supply, offering great flexibility when it comes to finding the optimal mounting location.
