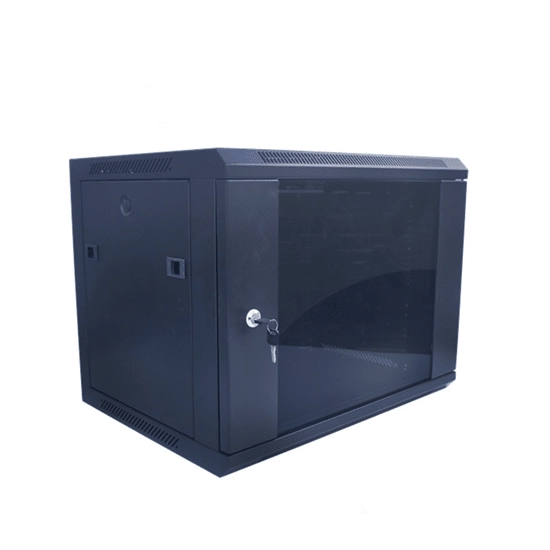

9U 19in 450mm Deep Network Cabinet, Wall Mountable
Product Code: PRONETCAB9U
- Designed to safely organise your patch cables
- Lockable network cabinets offer security
- Welded side panels for rigidity
- Available in 4U, 6U, 9U, 12U
Payment methods accepted
Product Description
9U 19" 450mm Deep Network/Patching/Data Cabinet, Wall Mountable
Our PRONETCAB9U network cabinet is a perfect addition for your networking infrastructure. With a sophisticated and modern design, it is ideal for any home or office environment.
Safely and securely organize your patch panels and other equipment in this lockable network cabinet, offering enhanced security for your servers, routers, DVRs, switches, and more.
The welded side panels provide rigidity and further secure the cabinet. The door can be mounted for convenient opening to the left or right. The side panels can be easily removed for ease of access. The cabinet also features cable entry from the top and bottom.
We offer a range of optional accessories such as a network cabinet shelf, blanking plate, and nuts and bolts for customization.
Features:
- Material: SPCC cold-rolled steel plate
- Front door: 4mm thick tempered glass, 180-degree opening angle, detachable and reversible for opening left or right
- Side doors: Plastic clasps for quick removal, optional installation for a small round lock (not included)
- Back door: Wall panels for easy wall mounting, also removable
- Top and bottom cable entry
- Maximum static load: 60kg
- Optional Power Distribution Unit (PDU), sold separately
- Optional roof cooling fan (not included)
- Front and rear adjustable columns
- Color: "Signal Black" RAL9004
- Cabinet size: 600mm x 450mm x 460mm, 9U
- Cabinet weight: 18kg
| Product | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|
| PRONETCAB4U | 600 | 450 | 240 | 13 |
| PRONETCAB6U | 600 | 450 | 330 | 16 |
| PRONETCAB9U | 600 | 450 | 460 | 18 |
| PRONETCAB12U | 600 | 450 | 600 | 21 |
Related products
Alternative products
Product Description
9U 19" 450mm Deep Network/Patching/Data Cabinet, Wall Mountable
Our PRONETCAB9U network cabinet is a perfect addition for your networking infrastructure. With a sophisticated and modern design, it is ideal for any home or office environment.
Safely and securely organize your patch panels and other equipment in this lockable network cabinet, offering enhanced security for your servers, routers, DVRs, switches, and more.
The welded side panels provide rigidity and further secure the cabinet. The door can be mounted for convenient opening to the left or right. The side panels can be easily removed for ease of access. The cabinet also features cable entry from the top and bottom.
We offer a range of optional accessories such as a network cabinet shelf, blanking plate, and nuts and bolts for customization.
Features:
- Material: SPCC cold-rolled steel plate
- Front door: 4mm thick tempered glass, 180-degree opening angle, detachable and reversible for opening left or right
- Side doors: Plastic clasps for quick removal, optional installation for a small round lock (not included)
- Back door: Wall panels for easy wall mounting, also removable
- Top and bottom cable entry
- Maximum static load: 60kg
- Optional Power Distribution Unit (PDU), sold separately
- Optional roof cooling fan (not included)
- Front and rear adjustable columns
- Color: "Signal Black" RAL9004
- Cabinet size: 600mm x 450mm x 460mm, 9U
- Cabinet weight: 18kg
| Product | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|
| PRONETCAB4U | 600 | 450 | 240 | 13 |
| PRONETCAB6U | 600 | 450 | 330 | 16 |
| PRONETCAB9U | 600 | 450 | 460 | 18 |
| PRONETCAB12U | 600 | 450 | 600 | 21 |
Technical Specification
Width
620mm
Depth
470mm
Height
490mm
Weight
15.27kg
