Masthead Triplexer UHF DAB/FM, Screened, F-Type

Product Code: BLACOM31T

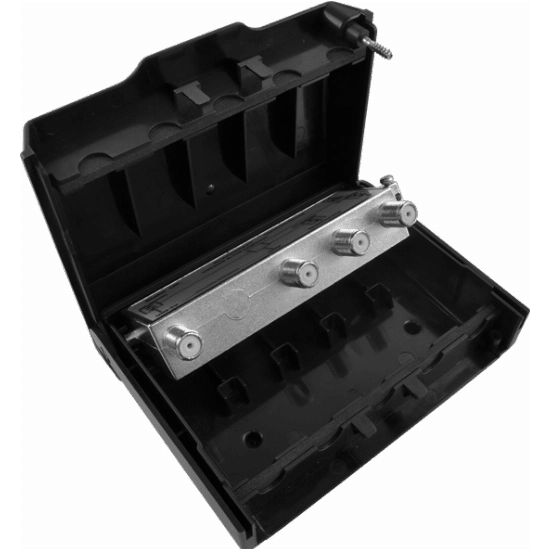

  • 90° wide opening door that clicks open/shut
  • Foam seal cable entry glands
  • Earth tag
  • F-Type Connectors
  • Robust wall-mountable lugs with standoff
Masthead Triplexer UHF DAB/FM, Screened, F-Type
Masthead Triplexer UHF DAB/FM, Screened, F-Type
Masthead Triplexer UHF DAB/FM, Screened, F-Type
Masthead Triplexer UHF DAB/FM, Screened, F-Type
£23.60 inc vat
Lifetime guarantee on internally installed products Includes technical support

Payment methods accepted

Mastercard Visa AMEX PayPal Discover Apple Pay Google Pay

Product Description

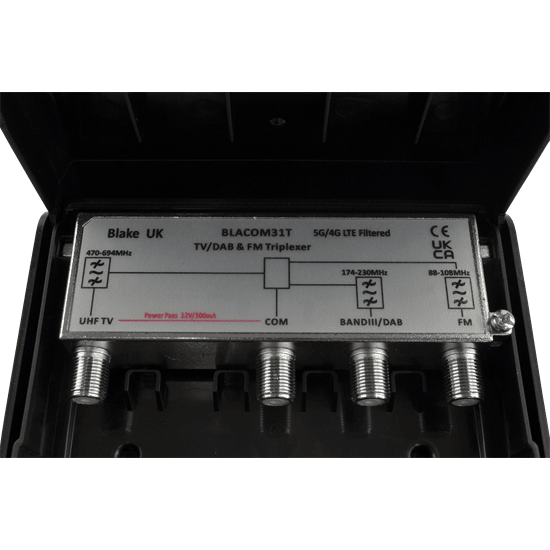

TV/FM/DAB Masthead Triplexer (Combiner/Splitter), Double Filtered For 5G & 4G

Combine or separate signals with minimal insertion loss with our 3 band triplexer, handling signals in FM 87.5-108Mhz, DAB 174-230MHz, and UHF 470-694MHz.

  • Low insertion loss
  • Power pass on UHF for masthead amplifiers
  • High rejection of unwanted bands
  • Equipotential bonding point/earthing tag.

The BLACOM31T allows you to distribute FM & DAB through an IRS system using a multiswitch, while also filtering out 5G & 4G in the system.

Technical Details:

Features BLACOM31T
Insertion Loss (UHF,DAB,FM) 1dB (typ)
Return Loss (UHF,DAB,FM) 16dB (typ)
DC Power Pass 24V/500mA
Impedance 75 Ohm

Product Description

TV/FM/DAB Masthead Triplexer (Combiner/Splitter), Double Filtered For 5G & 4G

Combine or separate signals with minimal insertion loss with our 3 band triplexer, handling signals in FM 87.5-108Mhz, DAB 174-230MHz, and UHF 470-694MHz.

  • Low insertion loss
  • Power pass on UHF for masthead amplifiers
  • High rejection of unwanted bands
  • Equipotential bonding point/earthing tag.

The BLACOM31T allows you to distribute FM & DAB through an IRS system using a multiswitch, while also filtering out 5G & 4G in the system.

Technical Details:

Features BLACOM31T
Insertion Loss (UHF,DAB,FM) 1dB (typ)
Return Loss (UHF,DAB,FM) 16dB (typ)
DC Power Pass 24V/500mA
Impedance 75 Ohm

Technical Specification

Width

50mm

Depth

146mm

Height

109mm

Weight

0.25Kg
