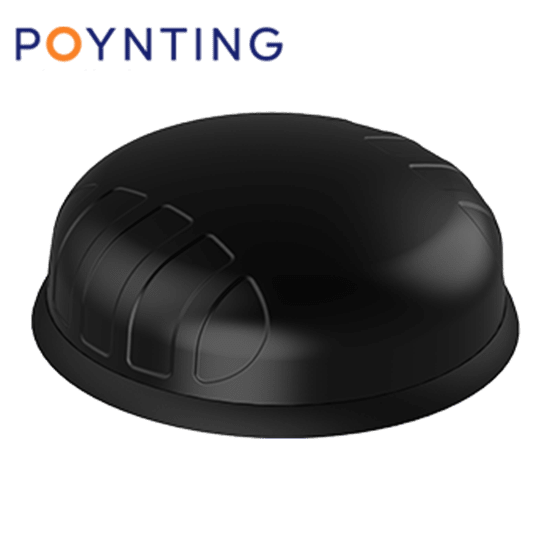

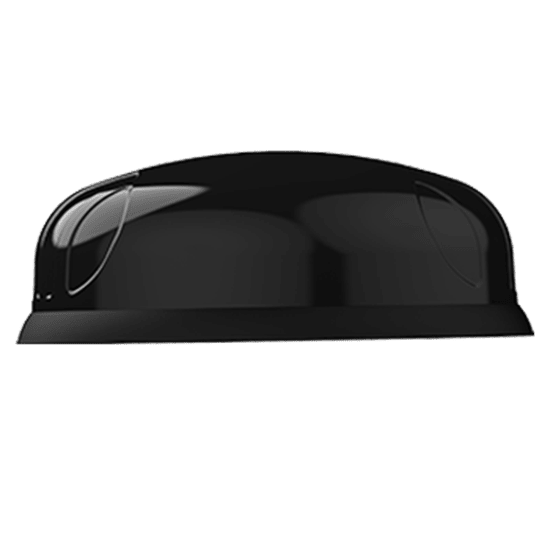

4-in-1 5G/LTE & WiFi PUCK-7-V2 Antenna

POYNTING’s PUCK Version 2 range offers a small profile antenna for use in a wide range of scenarios including on your motorhome/caravan, on a boat or in the IoT/M2M, Smart Meter, Smart Utilities, Transportation, Marine and the Agricultural/Farming markets.

The PUCK-7-V2 consists of a 4-in-1 antenna system within a single housing, featuring 2x2 MIMO 5G and 2x2 MIMO WiFi (Dual-band 2.4GHz & 5GHz) antennas.   The 2x 5G antennas offer wideband coverage from 617 to 6000 MHz, covering contemporary LTE/4G and 5G bands for future-proof implementation. The ultra-wideband performance of the cellular antennas allows it to be used across different operators and technologies and is ready for future cellular technologies up to 6 GHz for 5G applications.

The antenna provides two separate dual-band WiFi antennas offering concurrent 2.4GHz, 5GHz and 6GHz bands, capable of 802.11n and 802.11ac/ax/be with 2x2 MIMO.

The PUCK exceeds the performance of many competitors due to the attention to design of this high-performance antenna. Despite its small size, this antenna provides excellent performance, especially at the higher frequency bands, where performance is critical for 5G and LTE throughput along with connection stability.
