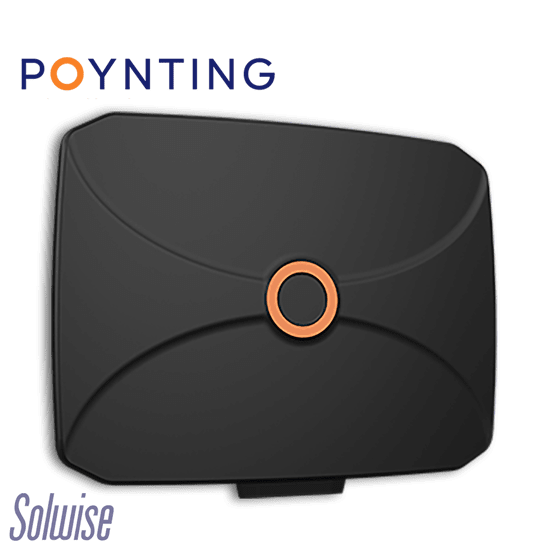

5-in1 Omni 5G Flexi window mount Antenna

The Poynting PANL-401 is a state-of-the-art, multi-functional cross-polarised omni antenna designed to revolutionise connectivity.

This versatile antenna configuration offers a 5-in-1 solution, featuring 4 x Cellular antennas and 1 x dual-band active GNSS antenna, providing exceptional performance and versatility for improving cellular and GPS signal reception in vehicles or fixed installations.

Ultra-Wideband Frequency Coverage: Supports frequencies from 410 to 6000 MHz, ensuring compatibility with multiple cellular operators and technologies.Future-Ready 5G support designed for seamless integration with upcoming 6 GHz 5G applications.

Reliable GNSS Performance: Includes a dual-band active GNSS (GPS) antenna for accurate navigation and precise location tracking in challenging environments.

Optimised Radiation Pattern: This offers an ideal balance of omni-directionality, pattern diversity, and elevation coverage, making it perfect for the transportation market.

Low-Profile and Compact Design: Blends seamlessly into vehicles or fixed installations, addressing both aesthetic and practical considerations.

With exceptional GNSS capabilities and wideband cellular performance, the PANL-401 serves as your gateway to unparalleled connectivity across diverse wireless applications.

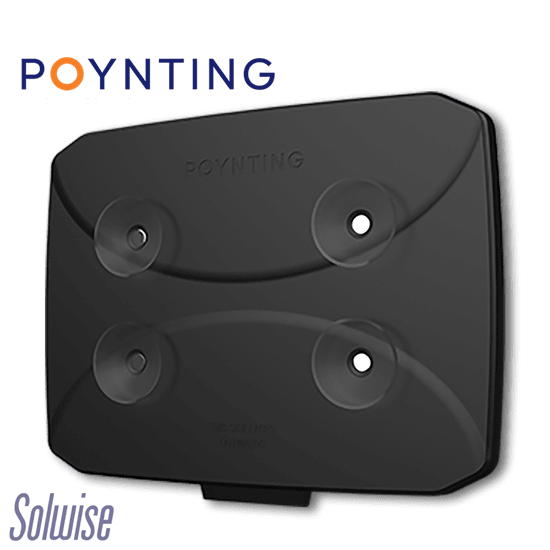

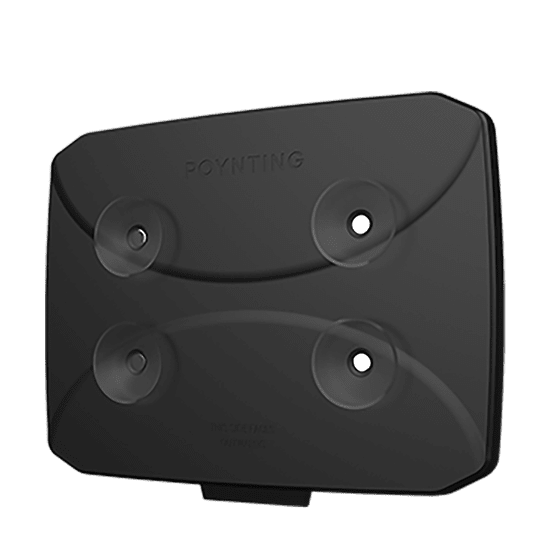

Convenient Installation: Features an innovative window mount design, allowing for easy attachment using suction cups or adhesive-backed velcro strips, ideal for use in vehicles and buildings. Both the suction cups and adhesive-backed velcro strips are included in the kit.

The PANL-401 antenna is designed to be used inside & mounted on the inside of a window, but it is IP65 rated, so can also be mounted outside if needed. People with motorhomes or campervans may choose to temporarily mount this antenna on the outside of a window with the suction cups provided once they are parked up, but the antenna would need to be taken down before the vehicle is moving, as it is not suitable to be left up permanently outside whilst driving. It is also worth noting that the GPS antenna's signal may be affected if the antenna is mounted on the outside of a window, due to the position in which the GPS antenna is located within the PANL-401.

Please note that tinted windows (especially the ones with foil in) may block the incoming signal and affect the antenna's capability.
