70m (1080P) or 40m (4K30) HDMI over CAT5/6 Extender,with IR

Product Code: PROHDMIEX70M

  • Watch & control a device on another TV
  • Supports high resolution up to 1080p
  • Audio effect such as Dolby Atmos
  • It will transmit signal up to 70m
70m (1080P) or 40m (4K30) HDMI over CAT5/6 Extender,with IR
70m (1080P) or 40m (4K30) HDMI over CAT5/6 Extender,with IR
70m (1080P) or 40m (4K30) HDMI over CAT5/6 Extender,with IR
70m (1080P) or 40m (4K30) HDMI over CAT5/6 Extender,with IR
£61.36 inc vat
Lifetime guarantee on internally installed products Includes technical support

Payment methods accepted

Mastercard Visa AMEX PayPal Discover Apple Pay Google Pay

Product Description

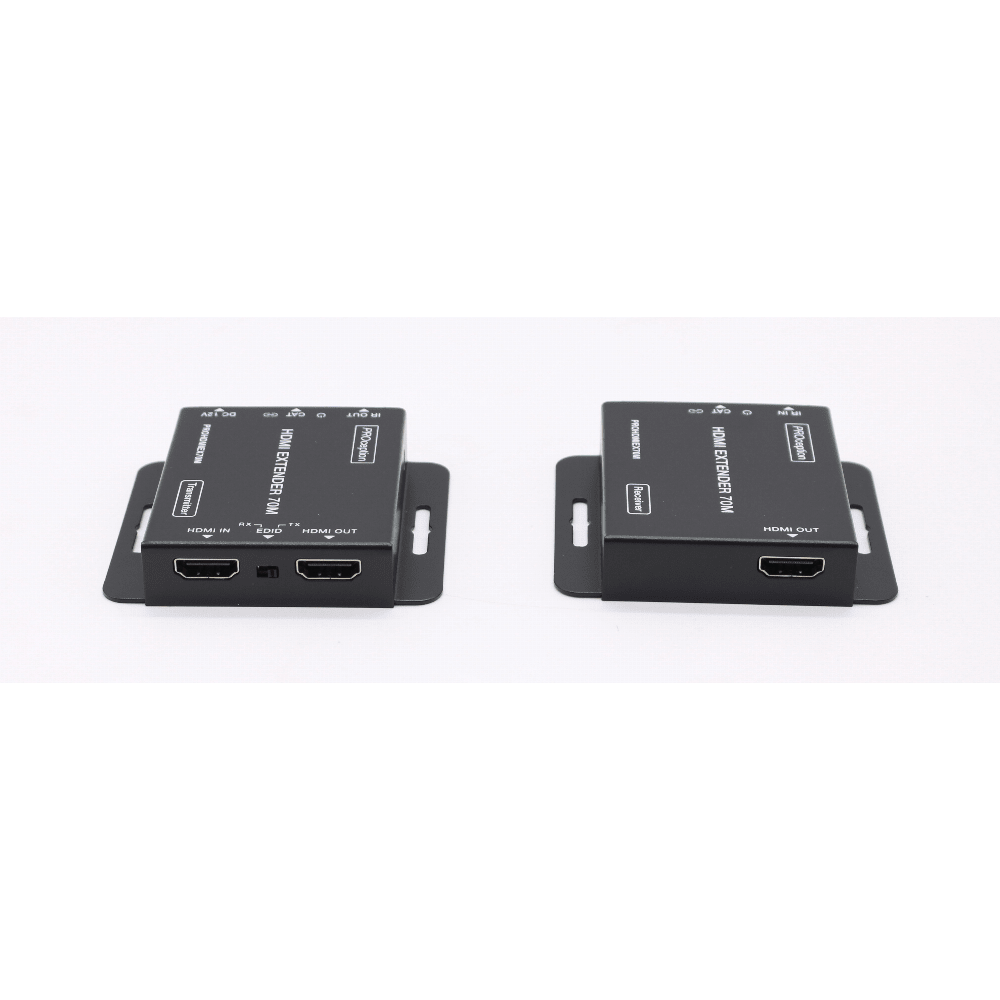

70m HDMI over CAT5/6/7 Extender with IR, PoE & Auto Distance Equaliser

This HDMI Extender can extend high definition video/audio signal and IR control signal up to 230ft/70m for 1080p resolution, and 131ft/40m for 4K30 resolution via a single CAT6 cable, which can achieve zero-delay, uncompressed long-distance transmission between the transmitter and receiver. This extender with HDMI loop output can be cascaded to the next extender, supporting resolution up to 4K@30Hz. It supports EDID copy function (you can choose local or remote EDID). It supports audio formats up to PCM7.1, Dolby True HD, DTS HD. This product can be widely used in multimedia conference halls, TV teaching and large-screen displays.

Features:

  • HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant
  • Support video resolution up to 4k2k@30Hz YUV 4:4:4
  • The maximum transmission distance via a single Cat6/5e cable is as follows:
  • Cat6: 230ft/70m for 1080p, 131ft/40m for 4K30
  • Cat5e: 197ft/60m for 1080p, 115ft/35m for 4K30
  • Support copying EDID from receiver display or loop out display
  • Supports 3D
  • Allow for cascading via additional HDMI loop out port Support one-way POC functionality (from transmitter to receiver)
  • One-way IR signal transmission
  • Compact design for easy and flexible installation

Kit contains:-

  • 1 × HDMI Transmitter
  • 1 × HDMI Receiver
  • 1 × IR Blaster Cable (1.5 meters)
  • 1 × IR Receiver Cable (1.5 meters)
  • 1 × 12V/1A DC Power Adapter
  • 1 × User Manual

Product Description

70m HDMI over CAT5/6/7 Extender with IR, PoE & Auto Distance Equaliser

This HDMI Extender can extend high definition video/audio signal and IR control signal up to 230ft/70m for 1080p resolution, and 131ft/40m for 4K30 resolution via a single CAT6 cable, which can achieve zero-delay, uncompressed long-distance transmission between the transmitter and receiver. This extender with HDMI loop output can be cascaded to the next extender, supporting resolution up to 4K@30Hz. It supports EDID copy function (you can choose local or remote EDID). It supports audio formats up to PCM7.1, Dolby True HD, DTS HD. This product can be widely used in multimedia conference halls, TV teaching and large-screen displays.

Features:

  • HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant
  • Support video resolution up to 4k2k@30Hz YUV 4:4:4
  • The maximum transmission distance via a single Cat6/5e cable is as follows:
  • Cat6: 230ft/70m for 1080p, 131ft/40m for 4K30
  • Cat5e: 197ft/60m for 1080p, 115ft/35m for 4K30
  • Support copying EDID from receiver display or loop out display
  • Supports 3D
  • Allow for cascading via additional HDMI loop out port Support one-way POC functionality (from transmitter to receiver)
  • One-way IR signal transmission
  • Compact design for easy and flexible installation

Kit contains:-

  • 1 × HDMI Transmitter
  • 1 × HDMI Receiver
  • 1 × IR Blaster Cable (1.5 meters)
  • 1 × IR Receiver Cable (1.5 meters)
  • 1 × 12V/1A DC Power Adapter
  • 1 × User Manual

Technical Specification

Width

205mm

Depth

115mm

Height

75mm

Weight

0.52Kg
