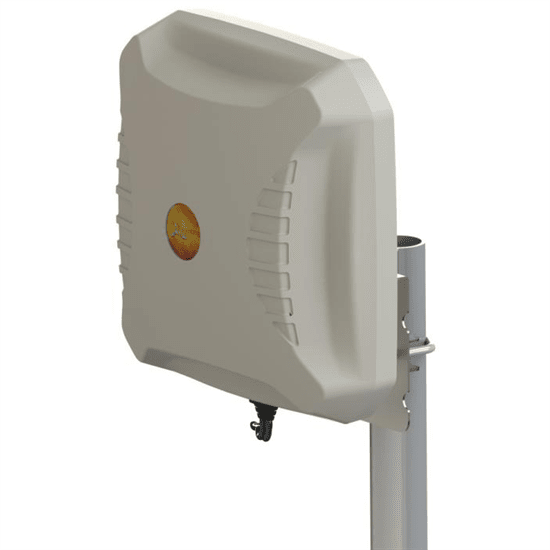

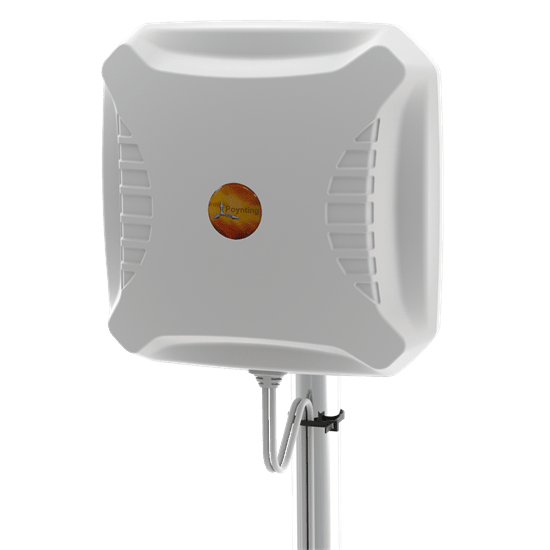

XPOL-2-5G - 5metre cables with SMA Plugs

The XPOL-2-5G is Poynting’s third generation “V3” of this very popular Cross Polarised (XPOL), cellular band, 2x2 MIMO antenna. The antenna enclosure effectively looks the same as the second generation “V2” but has been completely redesigned on the inside. They have used advanced metamaterial technology, making use of Artificial Magnetic Conductors (AMC) and new registered/patent pending radiator configuration, which is proving to yield exceptional improvements in bandwidth and gain. Radiation patterns of this antenna are exceptionally well controlled, further adding to the performance of the antenna.

The XPOL-2-5G antenna includes expanded frequency coverage which includes the 3400 ~ 4200 MHz bands, in addition to 617 ~ 960 MHz, 1710 ~ 2170 MHz, and 2300 ~ 2700 MHz. And enhanced gain performance which delivers up to 3 dB higher gain in the 1700 MHz and 2.7 GHz bands compared to the V2 model.

With advanced metamaterial technology the antenna uses artificial magnetic conductors (AMC) for improved signal efficiency & performance, as well as optimised radiation patterns that enhance overall antenna effectiveness.

Features
•  2-3dB higher gain over all the bands compared to “V2”
•  New 3400MHz ~ 4200MHz, 5G band with 11dBi gain
•  Consistent broadband performance
•  X-Polarised 2x2 MIMO Antenna

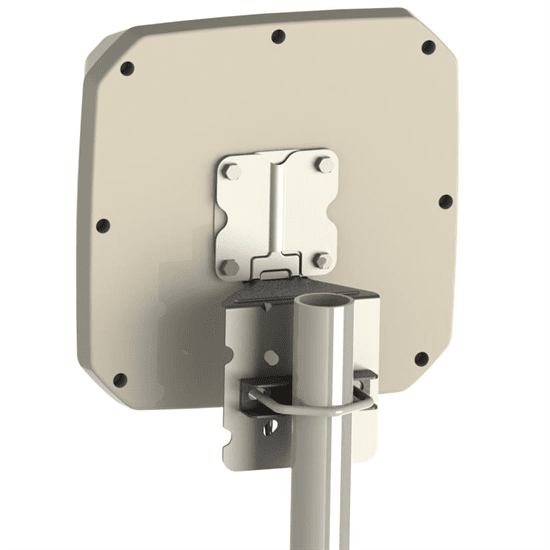

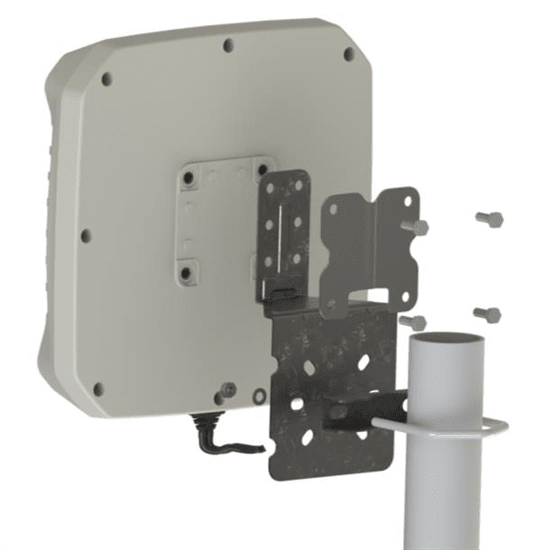

•  Wall or pole mountable with included Z-bracket
•  Lightweight & Rugged
•  Weatherproof & waterproof (IP65)
•  High pattern consistency across bands   for 4G/5G carrier aggregation

Ideal Use Application
•  Outdoor antenna for Fixed Wireless Access (FWA)
•  Consumer LTE/5G internet connectivity
•  Industrial & Commercial LTE/5G deployments
•  Urban and rural household reception enhancement
•  Agricultural & Farming LTE/5G data distribution
•  Power, Energy & Water telemetry access
•  Oil & Gas communication systems
•  Municipal & Government systems
•  Repeaters & coverage enhancement amplifiers
