2x2 Omni antenna for 4G/5G

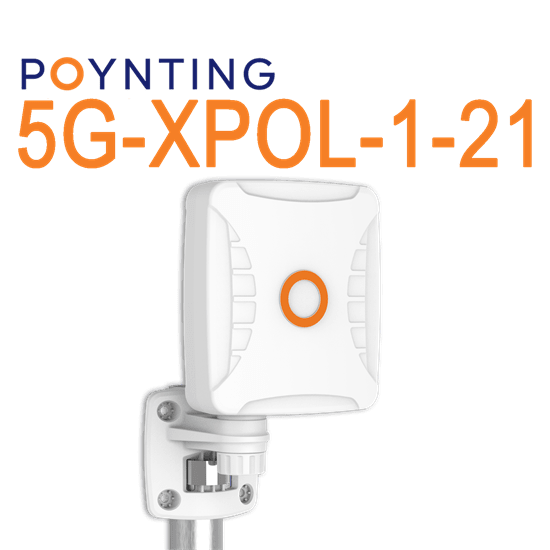

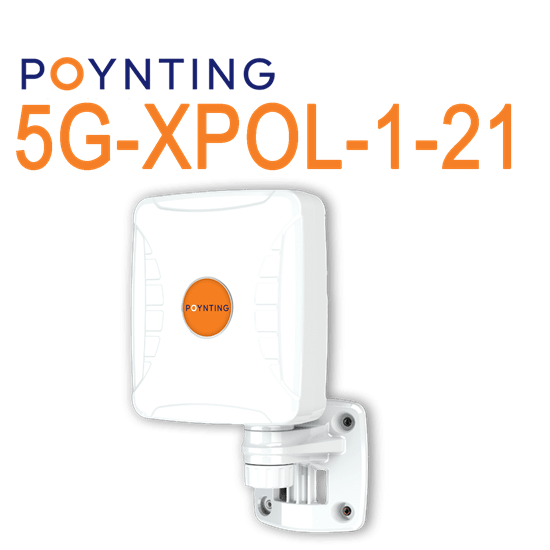

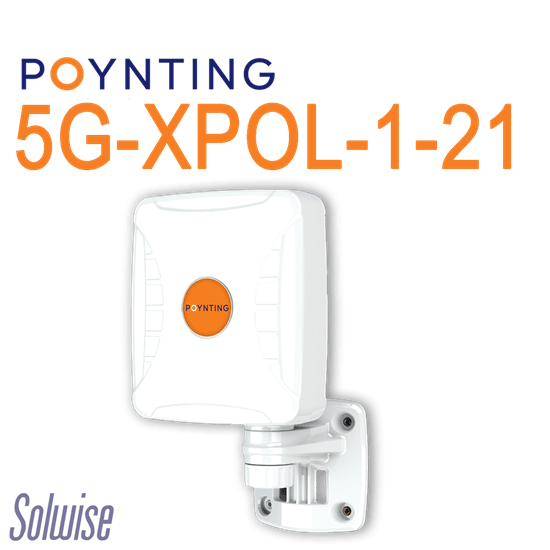

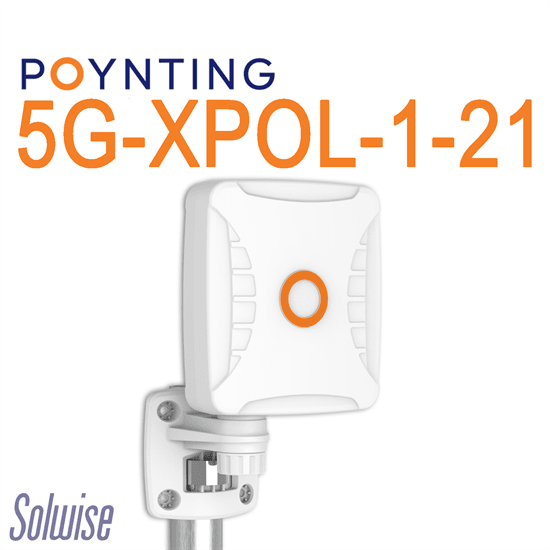

The Poynting XPOL-1-V2 is a cross-polarised Omni-directional LTE antenna. Its robust IP65-rated design makes it extremely resistant to harsh external conditions and its radiation patterns are well-controlled to spread itself as evenly as possible while supporting a wide variety of UK frequency bands, including 5G.

The V2-21 XPOL is a 2X2 MIMO device, whereas the V2-41 XPOL is a 4X4 MIMO device. This refers to how many data streams each antenna can support simultaneously, which essentially boils down to their maximum concurrent data bandwidth. 2X2 devices like the V2-21 contain two antennas, each supporting its own data streams, and 4x4 antennas like the V2-41 contain four antennas for four data streams. Most mobile LTE routers only have support for two data streams, so the V2-41 won't be necessary in most cases unless a 4x4 router is used with support for four LTE data streams.

The XPOL antenna has multiple mounting options including; pole mount (pole not included), wall mount, or window mounted with suction cups that are included in the kit. Most people with motorhomes or campervans choose to temporarily mount this antenna with the suction cups, once they are parked up. The XPOL antenna would need to be taken down before the vehicle is moving as it is not suitable to be left up permanently whilst driving.

Read about the differences between the V2 vs V3
