32-Way Fibre Cartridge Splitter Simplex SC/APC Single Mode

Product Code: BFS-CAR-SCA-32

  • 32-Way PLC Cartridge Splitter SC/APC
  • Compact and Modular Design
  • Low Loss Design
  • Integrates into Containment Boxes
32-Way Fibre Cartridge Splitter Simplex SC/APC Single Mode
32-Way Fibre Cartridge Splitter Simplex SC/APC Single Mode
32-Way Fibre Cartridge Splitter Simplex SC/APC Single Mode
32-Way Fibre Cartridge Splitter Simplex SC/APC Single Mode
32-Way Fibre Cartridge Splitter Simplex SC/APC Single Mode
32-Way Fibre Cartridge Splitter Simplex SC/APC Single Mode
£141.34 inc vat
Lifetime guarantee on internally installed products Includes technical support

Payment methods accepted

Mastercard Visa AMEX PayPal Discover Apple Pay Google Pay

Product Description

32-Way Single Mode Simplex Fibre Optical Cartridge PLC Splitter SC/APC

PLC (Planar Lightwave Circuit) fibre optic splitters are an essential component of any optical network. These devices can be used to divide a single incoming signal into multiple outputs, enabling the loading and transmission of data over large distances. This helps to significantly reduce cost and maintenance time in networks as fewer components are required for the installation and configuration process.

PLC splitters are made from Fused Biconical Tapered (FBT) technology which minimises insertion loss and crosstalk, resulting in greater stability, lower bit-error rates, and improved system performance. They work by separating light with an angle polished connector at one end which allows the optical signal to enter into one port and be divided amongst multiple outputs.

They are widely used in Passive Optical Networks (PONs) for FTTH (Fibre-To-The-Home) applications. They offer reliability, high isolation between output ports, low insertion loss and good channel uniformity. They are compact and light-weight, offering an neat and easy installation making them ideal for a wide range of applications.

Ultimately, the splitters offer reliable performance without compromising on quality of service, making them the preferred choice for long-distance connectivity solutions.

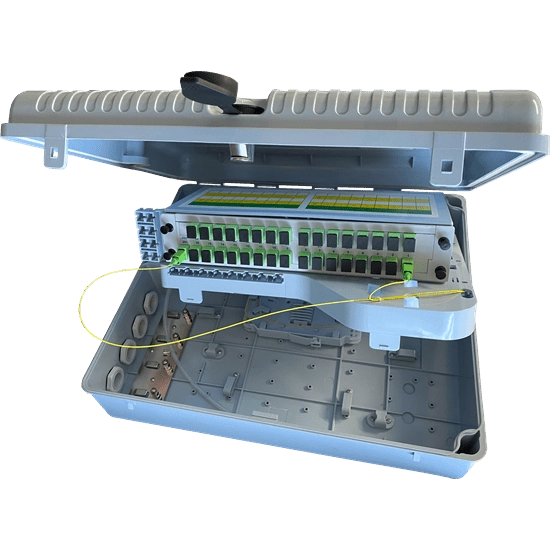

We offer a range of reliable PLC Optical Cartridge Splitters that are modular in design and offer the installer time saving installations. They are designed to be installed in our range of IP65 containment boxes.

Features:

  • Single Mode Simplex OS2 SC/APC Fibre
  • 32-Way module
  • For use with our containment boxes

Applications:

  • CATV distribution and DOSIS data transmission
  • SAT-IF and DTT distribution
  • Other fibre optic communication systems

Technical Information:

Product Code
BFS-CAR-SCA-32
ConnectorsOptical SC/APC
Inputs
1
Outputs32
Fibre Grade
G6527A1
Wavelength
1260/1650nm
Insertion Loss
<16.5/16.9dB
Loss Uniformity<1.5dB
Polarisation Dependant Loss<0.25dB
Return Loss
>55/60dB
Directivity>55dB
Wavelength Dependant Loss<0.5dB
Operating Temperature
-40~85°C


Product Description

32-Way Single Mode Simplex Fibre Optical Cartridge PLC Splitter SC/APC

PLC (Planar Lightwave Circuit) fibre optic splitters are an essential component of any optical network. These devices can be used to divide a single incoming signal into multiple outputs, enabling the loading and transmission of data over large distances. This helps to significantly reduce cost and maintenance time in networks as fewer components are required for the installation and configuration process.

PLC splitters are made from Fused Biconical Tapered (FBT) technology which minimises insertion loss and crosstalk, resulting in greater stability, lower bit-error rates, and improved system performance. They work by separating light with an angle polished connector at one end which allows the optical signal to enter into one port and be divided amongst multiple outputs.

They are widely used in Passive Optical Networks (PONs) for FTTH (Fibre-To-The-Home) applications. They offer reliability, high isolation between output ports, low insertion loss and good channel uniformity. They are compact and light-weight, offering an neat and easy installation making them ideal for a wide range of applications.

Ultimately, the splitters offer reliable performance without compromising on quality of service, making them the preferred choice for long-distance connectivity solutions.

We offer a range of reliable PLC Optical Cartridge Splitters that are modular in design and offer the installer time saving installations. They are designed to be installed in our range of IP65 containment boxes.

Features:

  • Single Mode Simplex OS2 SC/APC Fibre
  • 32-Way module
  • For use with our containment boxes

Applications:

  • CATV distribution and DOSIS data transmission
  • SAT-IF and DTT distribution
  • Other fibre optic communication systems

Technical Information:

Product Code
BFS-CAR-SCA-32
ConnectorsOptical SC/APC
Inputs
1
Outputs32
Fibre Grade
G6527A1
Wavelength
1260/1650nm
Insertion Loss
<16.5/16.9dB
Loss Uniformity<1.5dB
Polarisation Dependant Loss<0.25dB
Return Loss
>55/60dB
Directivity>55dB
Wavelength Dependant Loss<0.5dB
Operating Temperature
-40~85°C


Technical Specification

A Connector Type

SC/APC

Fibre

Passive Optical Network (PON) Fibre

Width

140mm

Depth

260mm

Height

50mm

Weight

0.5Kg

Frequently Asked Questions

Single Mode refers to the type of optical fibre used in this splitter, optimized for transmitting optical signals over long distances with minimal signal dispersion.
This splitter uses SC/APC connectors, known for their precision and low signal loss, ensuring high-quality optical connections.
