32-Way Full Fibre Cartridge Containment IP65, For Cartridge Splitters
Product Code: BFBOX-CAR-32
- IP65 rated
- Compact design
- Wall or pole mountable
- Anti-theft security
- Ground isolation
Select Enclosure Size
Payment methods accepted
Related products
Alternative products
Product Description

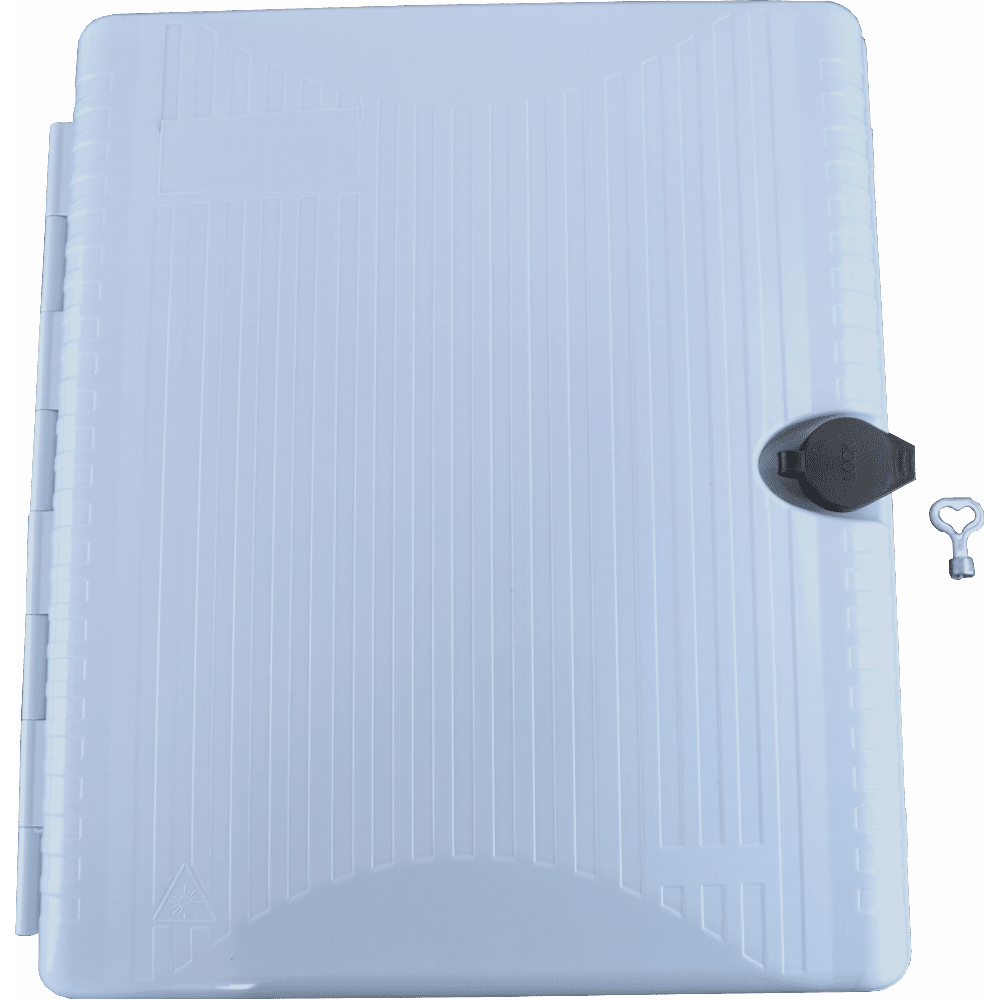

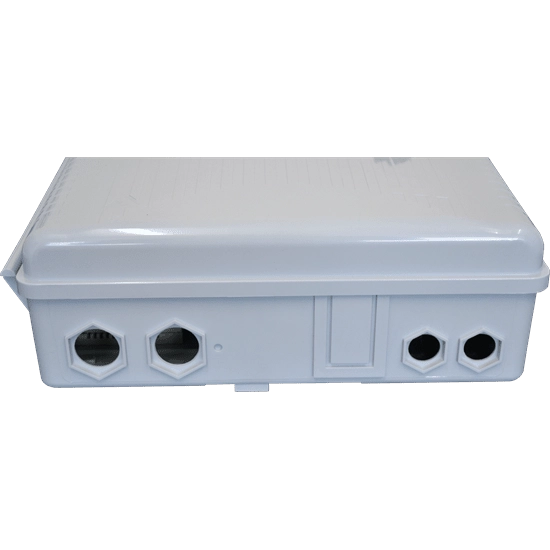

32-Way Full Fibre Cartridge Containment
Introducing the BFBOX-CAR-32 IP65 Rated Fibre Cartridge Containment Box. Designed to provide secure and reliable connectivity for up to 32-way cartridge modules, the BFBOX-CAR-32 is a robust solution for network installations. Its sturdy construction ensures optimal protection and performance, making it suitable for various applications.
Enhance your network infrastructure with this cartridge containment box, offering a dependable solution for cartridge management. Its robust rating, flexible configuration, and compact design make it ideal for different setups, including internal and outdoor deployments.
This versatile box accommodates a range of optical cartridge modules, allowing scalability to meet specific needs. With support for multiple modules, it offers flexibility and adaptability for various scenarios.
Ideal for FTTH networks, the BFBOX-CAR-32 provides solid protection and convenient management. Its sleek design ensures a neat installation, and internal components enable efficient cable organization.
Key features include enhanced durability, secure access, reliable isolation, and high-quality construction materials. These attributes contribute to its functionality and reliability.
The 32-way cartridge containment box finds applications in CATV distribution, data transmission, communication systems, and subscriber loops.
Features:
- IP65 Rating: Robust protection against dust and water, making it ideal for challenging environments.
- Compact Design: Maximises interior space, optimizing fibre optic connectivity.
- Mounting Options: Can be easily mounted on walls or poles for versatile installation.
- Anti-Theft Security: Equipped with a lockable door for added protection.
- Ground Isolation: Ensures reliable performance and eliminates interference.
Applications:
- CATV distribution and DOSIS data transmission
- SAT-IF and DTT distribution
- Other fibre optic communication systems
- Telecommunications subscriber loop
Technical Information:
| Product Code | BFBOX-CAR-32 |
|---|---|
| Connector | Optical SC/APC |
| Design | Cartridge (32 max) |
| Dimensions | 390 x 322 x 120mm |
| Insertion Loss | ≤0.2dB |
| Return Loss | ≥60dB (APC) |
| Insertion/Removal Cycles | >1,000 times |
| Operating Temperature | -40°C to 85°C |
| Relative Humidity | ≤85% (+30°C) |
Fixings Pack Contents:
- Fixing screws
- Fixing plugs
- Clear splice protectors
- Mini tie wraps
- PVC protective tube
- Rear mounting clamps
- Mounting screws and washers
- Jubilee clips
- Glands
- Tubular key
Technical Specification
Fibre
Passive Optical Network (PON) Fibre
Width
320mm
Depth
380mm
Height
115mm
Weight
3.33kg
