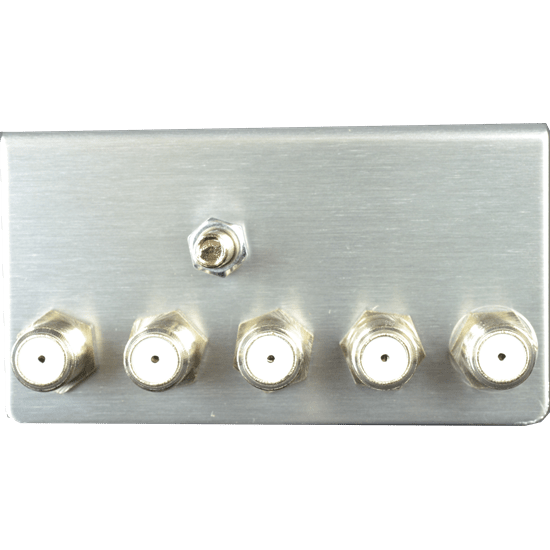

5-Way Earth Bonding Bar

Product Code: PROBAR5

  • F type earth bonding bar
  • 5 way
5-Way Earth Bonding Bar
5-Way Earth Bonding Bar
5-Way Earth Bonding Bar
£11.03 inc vat
Lifetime guarantee on internally installed products Includes technical support

Payment methods accepted

Mastercard Visa AMEX PayPal Discover Apple Pay Google Pay

Product Description

5 Way Earth Bonding bar

High-quality bonding bars for carrying out supplementary equipotential bonding in distribution systems in accordance with BS EN 60728-11. The use of very high quality RF connectors in these products ensures almost 'transparent' low-SWR connections, right up to the the highest satellite IF frequencies.

Also useful for general-purpose signal interconnection and patching purposes.

Features:

  • One, two, five and eight-way models available.
  • Very high grade back-to-back F couplers ensure excellent 75Ω impedance matching and low insertion loss for minimal signal disturbance.
  • Blocks have screw terminal connection accepting conductors up to 10 mm2.
  • Bars have substantial M5 studs for bonding connections up to 6 mm2 using standard crimp ring terminals.
  • Bars are supplied fully assembled, complete with two yellow crimp terminals for 4 or 6 mm2 cable.

Technical Information:

Product Code
Ways
Frequency Range

Insertion

loss

Return

loss

Signal

Connectors

Bonding

Connections

PROBAR1

1

DC - 2300MHz

=0.1dB

=24dB

Type 'F'

Screw terminal

PROBAR2 2

DC - 2300MHz

=0.1dB

=24dB

Type 'F'

Screw terminal

PROBAR5 5

DC - 2300MHz

=0.2dB

=21dB

Type 'F'

M5 stud

PROBAR8 8

DC - 2300MHz

=0.2dB

=21dB

Type 'F'

M5 stud

Product Description

5 Way Earth Bonding bar

High-quality bonding bars for carrying out supplementary equipotential bonding in distribution systems in accordance with BS EN 60728-11. The use of very high quality RF connectors in these products ensures almost 'transparent' low-SWR connections, right up to the the highest satellite IF frequencies.

Also useful for general-purpose signal interconnection and patching purposes.

Features:

  • One, two, five and eight-way models available.
  • Very high grade back-to-back F couplers ensure excellent 75Ω impedance matching and low insertion loss for minimal signal disturbance.
  • Blocks have screw terminal connection accepting conductors up to 10 mm2.
  • Bars have substantial M5 studs for bonding connections up to 6 mm2 using standard crimp ring terminals.
  • Bars are supplied fully assembled, complete with two yellow crimp terminals for 4 or 6 mm2 cable.

Technical Information:

Product Code
Ways
Frequency Range

Insertion

loss

Return

loss

Signal

Connectors

Bonding

Connections

PROBAR1

1

DC - 2300MHz

=0.1dB

=24dB

Type 'F'

Screw terminal

PROBAR2 2

DC - 2300MHz

=0.1dB

=24dB

Type 'F'

Screw terminal

PROBAR5 5

DC - 2300MHz

=0.2dB

=21dB

Type 'F'

M5 stud

PROBAR8 8

DC - 2300MHz

=0.2dB

=21dB

Type 'F'

M5 stud

Technical Specification

Weight

0.09Kg
