Quick Add

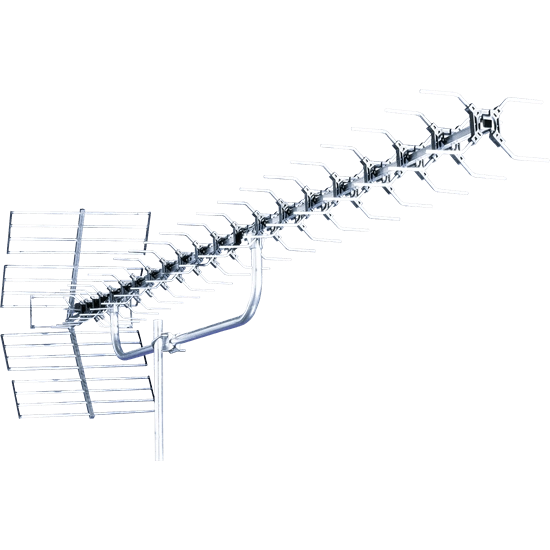

104 Element Multibeam Aerial, Group K
Product Code: JBX21K
- 104 element TV aerial
- Group K working on Ch. 21-48
- High gain aerial for weak signal areas
- F-Type Connection
- Comes with aerial clamp
Payment methods accepted
Product Description
104 Ele / 21 Bay High Gain Multibeam Aerial Group K Channels 21-37 (474-602MHz) Boxed
Suitable for all Freeview™ TV aerial applications. Digital Terrestrial Television (DTT) reception providers include Freeview™, Youview™ and BT Vision™.
Features:
- For poor reception areas.
- Directional high gain multibeam aerial.
- Can be mounted horizontally or vertically for suitable polarisation.
- Solid rod rotate-and-lock X type multi bay element design.
- Pre-assembled elements to minimise installation time.
- Tilt-and-slide clamp, allows elevation adjustment for improved noise rejection.
- Mounting bracket for aerial will fit mast diameter from 1" (25.4mm) to 2" (50.8mm).
- Steel parts are protected either with BZP (bright zinc plating) or manufactured from Hot Dip Zinc coated strip.
- Plastic parts are UV stabilised.
- Fortified 16 element reflectors for improved anti-ghosting properties of your Freeview™ reception.
- Saddle and clamp dipole connection.
- Aerials packaged one per box with full instructions included.
- Use with our range of PROception distribution amplifiers to watch Freeview™ or Sky™ on multiple TVs.
Technical Information:
Product | Connection | Benchmark Standard | Group | Elements | Gain (dBd) | Gain (dBi) | Beamwidth (°) | Length (mm) |
JBX21K | Saddle and Clamp | - | K (Grey) | 104 | 14.5-15 | 16.7-17.2 | 12-13 | 2600-3300 |
Technical Specification
Weight
4.4kg
