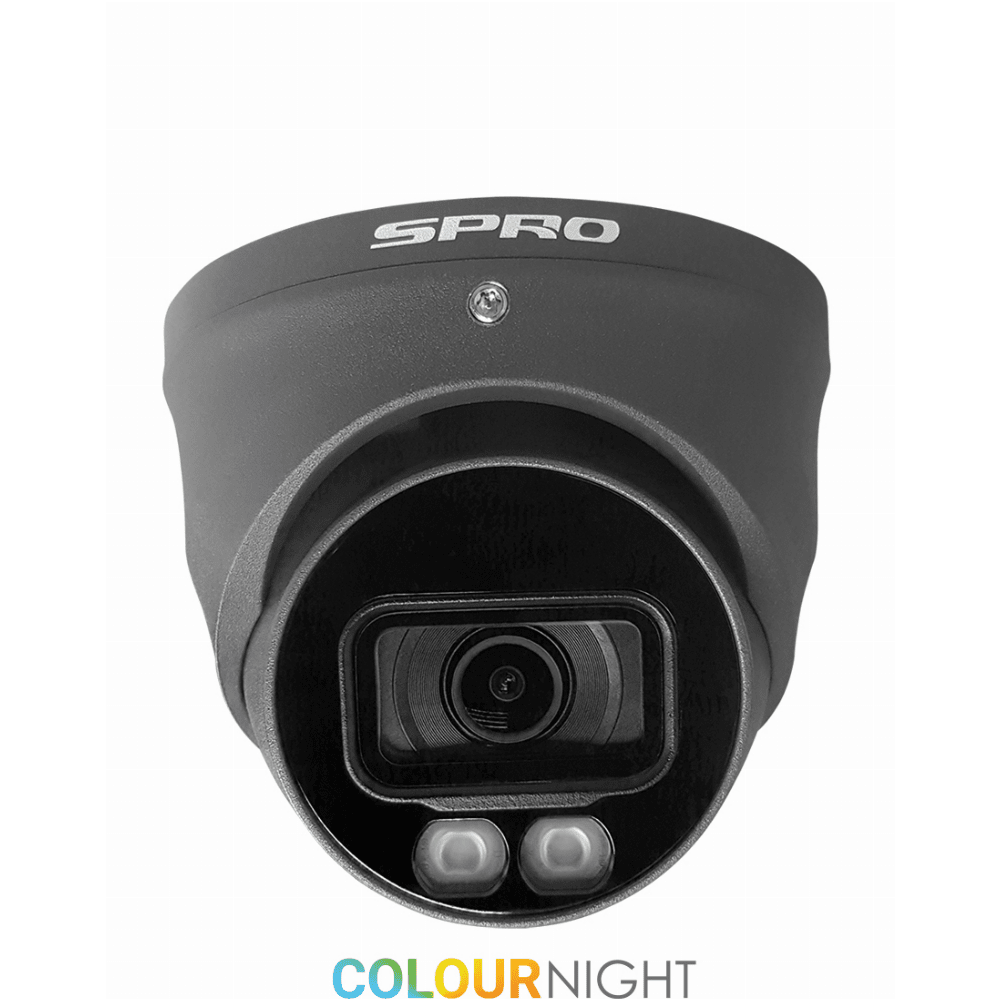

SPRO Grey 5MP 40M IR 2.8mm Fixed Turret Camera With Full Colour Night Vision

Product Code: DHD50-28LG-40M-4-M

5 Megapixel resolution

SPRO Grey 5MP 40M IR 2.8mm Fixed Turret Camera With Full Colour Night Vision

£76.58 inc vat

Add to Basket

Lifetime guarantee on internally installed products Includes support

Payment methods accepted

Description Reviews

Product Description

This camera shows full colour even at night due to two ultra bright warm white LED and up to 40 metres.

It also has one-way Audio Over Coax if used with the SPRO DHD range of DVR (Channel 1 only).

Download leaflet here

Specifications:
Model Number	DHD50/28LG/40M-4-M (GREY)
Image Sensor	1/2.7 inch CMOS
Effective Pixels	2592 (H) × 1944 (V), 5MP
Electronic Shutter Speed	1/25~1/100000s
S/N Ratio	More than 65dB
Min. Illumination	0.005Lux/F1.2, 0Lux White Light on
Fill Light (White Light) Distance	Distance up to 40m
Fill Light On/Off Control	Auto/ Manual
Fill Light Number	2
Lens
Lens Type	Fixed lens
Mount Type	M12
Focal Length	2.8mm
Max Aperture	F1.2
{FORGEGLOSSARY_Angle of View}	H: 98°
Iris Type	Fixed iris
Close Focus Distance	900 m
DORI Distance	Detect: 63.0 m Observe: 25.0 m Recognize: 13.0 m Identify: 6.0 m
Pan / Tilt / Rotation
Pan/Tilt/Rotation	Pan:0˚~360˚ / Tilt: 0° ~ 180° / Rotation: 0° ~ 360°
Video
Video {FORGEGLOSSARY_Frame Rate}	CVI: PAL: 5M@20fps, 4M@25fps, 1080P@25fps; AHD: PAL: 5M@20fps, 4M@25fps; TVI: PAL: 5M@20fps, 4M@25fps; CVBS: PAL: 960H
Resolution	5M (2592 × 1944); 4M (2560 × 1440); 1080P (1920 × 1080); 960H (704 × 576/704 × 480)
BLC Mode	BLC / HLC / Digital WDR
WDR	Digital WDR
White Balance	Auto / Manual
Gain Control	Auto / Manual
Noise Reduction	2D NR
Smart Light	Yes
Mirror	Off/On
Privacy Masking	Off/On (8 area, rectangle)
Interface
Audio Interface	Built-in mic(-A) MUST use SPro DVR for this function (See recommended below)
Port
Video Port	Video output choices of CVI / TVI / AHD / CVBS by one BNC port
General
Power Supply	DC12V±30%
Power Consumption	Max 5.0W (12V DC, white light on)
Operating Conditions	-40°C ~ +60°C / Less than 95% RH
Storage Conditions	-40°C ~ +60°C / Less than 95% RH
Protection Grade	IP67
Casing	All metal housing
Dimensions	φ106.0 mm × 93.6 mm
Net Weight	0.46kg
Gross Weight	0.61kg
